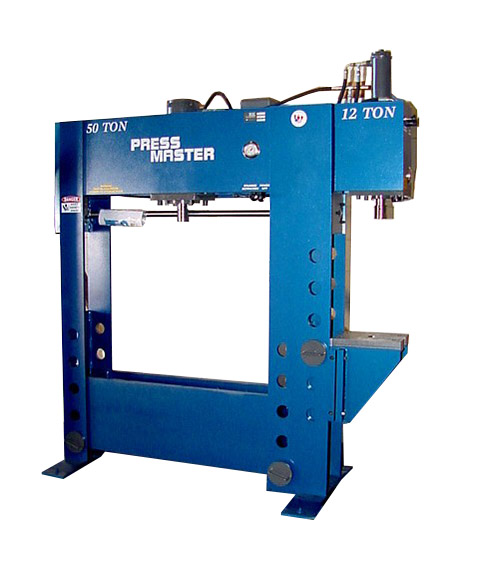

Model: HFBP-50/12
Type: Electric Over Hydraulic H-Frame
Capacity: 50 TON
Year: New
SPECIFICATIONS:
Capacity……………………… 50 Tons
Stroke……………………….. 12″
Bore…………………………. 6″Ram
Speed: Advance………………… 20 IPM
Return……………………….. 24 IPM
Distance Between Posts (R To L)…. 42″
Distance Between Posts (F To B)…. 10″
Maximum Distance From Bed To Ram… 35″
Motor………………………… 5 HP – 230V – 1 Phs
BROACHING C-FRAME SPECS:
Capacity……………………… 12 Tons
Stroke……………………….. 20″
Bore…………………………. 3″
Ram Speed: Advance…………….. 80 IPM
Return……………………….. 144 IPM
Dimensions (H X W X D)…………. 93” X 86” X 50″
Weight……………………….. 1600 Lbs
EQUIPPED WITH:
Double Acting Cylinder
Permits Pulling & Pressing
Hydraulic Power Lift Table
Electric/hydraulic Operation
Heavy Duty Steel Structure
Open Sides To Facilitate Work On Long Pieces
Flat Ram Nose
Cylinder Activation Is Fingertip Controlled
Self Locking Table
(10) Gallon Hydraulic Oil Reservoir
Low Pressure Hydraulic System
Standard Features 12 Ton C-frame:
Pressure Regulator
Speed Control
OPTIONAL ACCESSORIES:
Foot Pedal-Electric Solenoid Valve
Adjustable Stroke Control w/Foot Pedal
V-Blocks
Pressure Regulator – Limits Ram Pressure
Front Safety Guard
18” Stroke Cylinder
24” Stroke Cylinder
