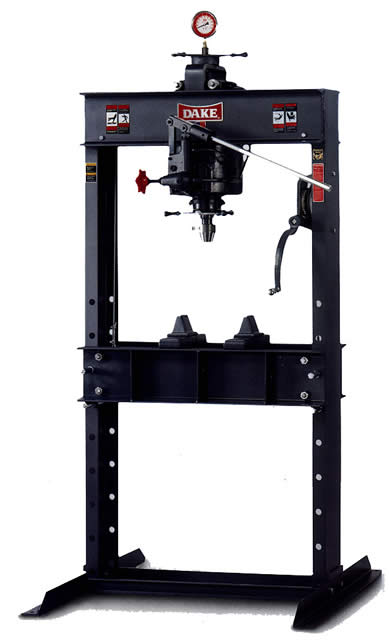

Model: 1P-50
Type: Air Over Hydraulic H-Frame
Capacity: 50 Ton
Year: New
SPECIFICATIONS:
# Of Pumps ………….. 1
Capacity…………….. 50 Ton
Air Pressure…………. 90-125 PSI
Ram Travel…………… 10”
Advanced Speed……….. 65 IPM
Press Speed………….. 3 IPM
Minimum Ram To Table….. 5”
Maximum Ram To Table….. 40”
Screw Travel…………. 7″
Between Uprights……… 32-3/4″
Between Table Channels… 7-1/4”
Height ……………… 87″
Weight………………. 1,100 Lbs
EQUIPPED WITH:
Hand Operated Hydraulic Jack
(2) Forged Steel V-Blocks
(2) Forged Steel Table Plates
Flat Ram Nose
By-Pass Hole
V-Ram Nose (N/A On 25 Ton)
Safety Release Valve
Self Locking Table Hoist
Rapid Ram Return
Stroke Indicator
Movable Workhead
Adjustable Table
Pressure Gauge
COMMENTS: Mfg In The U.S.A.
