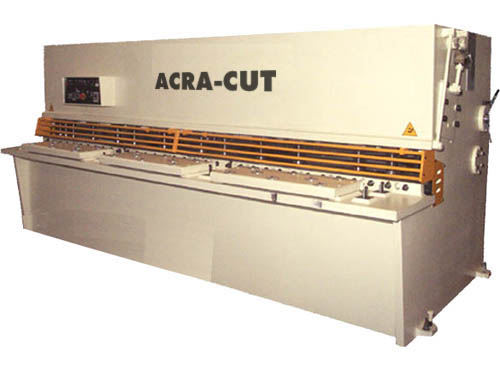

Model: 3125
Type: Hydraulic “Swing Beam” Design
Year: New
SPECIFICATIONS:
Length of Cut:……….. 98”
Max. Thickness of Cut:… 5/16”
Strokes per Minute:…… 14
Motor Size:………….. 15 HP-220/440V-3 Phs
Weight:……………… 14,330 Lbs
SHEARING CAPACITIES:
Mild Steel ………….. 5/16”
Stainless …………… 5/32”
Aluminum ……………. 15/32”
EQUIPPED WITH:
Manual “Quick Change” Blade Gap Adjustment (Side)
(36”) Front Operated Power Backgauge w/Automatic “Swing-Up”
Hi-Carbon, Hi-Chrome Blades
(43”) Squaring Arm
(3) Front Support Arms
Stroke Counter
Bolt on Table Segments w/Ball Transfers
Foot Pedal Control
Blade Gaurd w/Micro-Switch
Electric Stroke Adjustment
Pressure Sensing, Neoprene Padded Holddowns
OPTIONAL ACCESORIES AVAILABLE
COMMENTS:
Note: “Hydraulic Overload” Protection Prevents Operator From Harming Shear Should Operator “Mistakenly” Attempt to Cut 3/8” or Thicker Material.
A “U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part?
Have A Technical Question?
CALL: IMCO at 614-914-5087
F.O.B.: Out Of State Warehouse
TERMS: Check w/Order
All prices subject to change without notice
