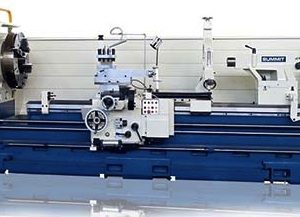

Model: 42-14
Year: New
SPECIFICATIONS:
Swing Over Bed……….. 42”
Swing Over Cross Slide… 29.5”
Swing in Gap…………. 63.4”
Dist Between Centers….. 320”
Max Turning Length……. 320”
Spindle Nose…………. A2-20
Spindle Hole…………. 14”
Bed Width……………. 22”
Spindle Speeds (12)…… 3 – 250 RPM
Threading……………. Inch / Metric
Motor Size…………… 30 HP – 220/440V – 3 Phs
Tailstock Taper………. #6 MT
Gross Weight…………. 38,100 Lbs
Shipping Dimensions…… 410”L x 63”W x 93”H
EQUIPPED WITH:
(4) Way Rapid Traverse
Full Length Splash Guard
Chuck Guard
Steady Rest w/Rollers
Follow Rest
Coolant System
Taper Attachment
Halogen Work Light
Tool Box w/Tools
Manuals
MACHINE FEATURES:
14″ Spindle Hole
Heavily Ribbed Cast Bed & Base
H & G Extra Wide Bed Ways
Removable Gap
Feed Reversing at the Apron
(2) Speed Tailstock
Auto Lube
OPTIONAL ACCESSORIES:
20″ – 3 Jaw Bison Chuck (Semi Steel)
20″ – 3 Jaw Bison Chuck (Steel)
25″ – 4 Jaw Bison Chuck (Semi Steel)
25″ – 4 Jaw Bison Chuck (Steel)
Quick Change Tool Post w/(6) Holders
Newall Digital Readout – Installed
COMMENTS: Mfg. In Europe
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO At 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
