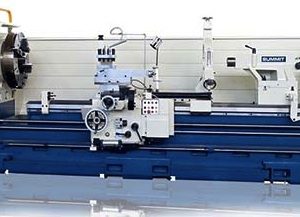

Model: 42-6
Type: Hollow Spindle Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 42”
Swing Over Cross Slide… 29.5”
Swing in Gap…………. 63.4”
Dist Between Centers….. 200”
Max Turning Length……. 200”
Spindle Nose…………. A2-11
Spindle Hole…………. 6.1”
Bed Width……………. 22”
Spindle Speeds (12)…… 9 – 600 RPM
Threading……………. Inch / Metric
Motor Size…………… 30 HP – 220/440V – 3 Phs
Tailstock Taper………. #6 MT
Gross Weight…………. 28,800 Lbs
Shipping Dimensions…… 292”(l) x 63”(w) x 93”(h)
EQUIPPED WITH:
(4) Way Rapid Traverse
Full Length Splash Guard
Chuck Guard
Steady Rest w/Rollers
Follow Rest
Coolant System
Taper Attachment
Halogen Work Light
Tool Box w/Tools
Manuals
MACHINE FEATURES:
6.1″ Spindle Hole
Heavily Ribbed Cast Bed & Base
H & G Extra Wide Bed Ways
Removable Gap
Feed Reversing at the Apron
(2) Speed Tailstock
Auto Lube
OPTIONAL ACCESSORIES:
20″ – 3 Jaw Bison Chuck (Semi Steel)
20″ – 3 Jaw Bison Chuck (Steel)
25″ – 4 Jaw Bison Chuck (Semi Steel)
25″ – 4 Jaw Bison Chuck (Steel)
Quick Change Tool Post w/(6) Holders
Newall Digital Readout – Installed
COMMENTS: Mfg. In Europe
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
