Model: M

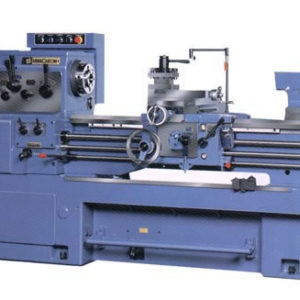

Type: Geared Head Lathe
Year: New
SPECIFICATIONS:
Swing Over Bed……….. 40”
Swing Over Cross Slide… 27.95”
Swing in Gap…………. 57.09”
Dist Between Centers….. 193”
Spindle Nose…………. A2-11
Spindle Hole…………. 6”
Bed Width……………. 24”
Spindle Speeds……….. 4 – 420 RPM
Threading……………. Inch/Metric
Motor Size…………… 30 HP – 220/440V – 3 Phs
Tailstock Taper………. #6 MT
Gross Weight…………. 24,460 Lbs
Dimensions…………… 208.8″L x 80.7″W x 58.7″H
EQUIPPED WITH:
40″ – 4 Jaw Face Plate
16″ Steady Rest
Auto Lubrication
Dead Center
#6 MT Center Sleeve
Toolpost
Leveling Pads
Tool Box w/Tools
Manuals
MACHINE FEATURES
6″ Spindle Hole
Gap Bed Design
(2) Speed Tailstock
Inch/Metric Gear Box
Longitudinal & Cross Rapids
Lubrication Device for Headstock
(1) Piece Casting
OPTIONAL EQUIPMENT:
(1.18” – 5.9”) Follow Rest
16” Steady Rest w/Rollers
24” Steady Rest w/Rollers
Roller Support (Mounted on Bedway)
Roller Support for Chuck
Taper Attachment
#6 MT Live Center
Upgrade from 30 to 40 HP Motor
Upgrade from 30 to 50 HP Motor
Newall Digital Readout
