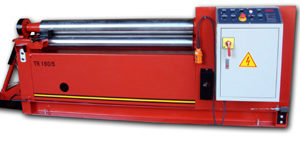

Model: AS 90-12/2.5
Type: Hydraulic
Year: New
SPECIFICATIONS:
Roll Length:…………….. 50”
Top Roll Diameter:……….. 3.50”
Rolling Cap. (Mild Steel):… .075” (10 GA) 36,000 PSI Yield Material
Pre-Bend Cap.(Mild Steel):… .059” (12 GA) 36,000 PSI Yield Material
Min. Diameter (Rolling):….. 9.00”
Min. Diameter (Pre-Bend):…. 9.00”
Number of Rolls (Total):….. 3
Number of Rolls (Powered):… 2
Rolling Speed:…………… 13 FPM
Motor:………………….. 1.5 HP – 220/440V – 3 Phs
Weight:…………………. 1,250 Lbs
EQUIPPED WITH:
(3) Roll Initial Pinch
“Top” Pinch Roll … (Middle)
“Powered”
Nonadjustable
“Bottom” Pinch Roll … (Middle)
”Powered”
”Motorized” Adjustment
“Bottom” Forming Roll … (Front & Rear Side)
“Non-Powered”
“Motorized” Adjustment
Mechanical Driven via Electric Motor & Gear Reducer
Manual “Swing-Out” of Top Roll
Manual Adjustment of Back / Forming Roll (Hand Whee;)
Pinch & Forming Rolls Incline for Cone Rolling
Cone Rolling Attachment
Manual Adjustment of Pinch Roll (Hand Wheel)
Movable Control Console Equipped with:
Foot Pedal Control of Roll Rotation
E-Stop Button
Machine Perimeter E-Stop Cable
COMMENTS: Mfg. In Europe
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
