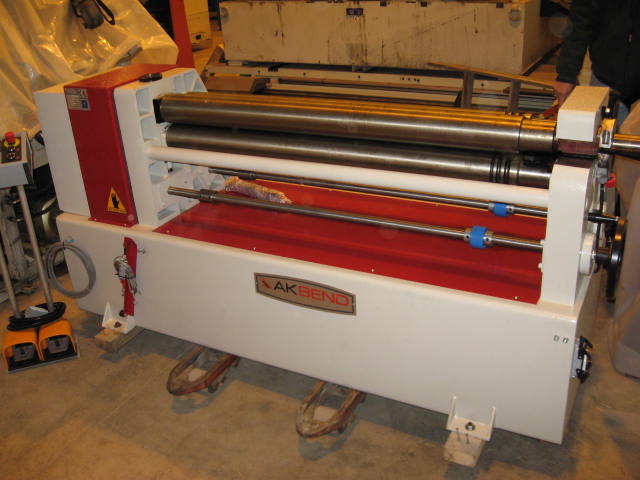

Model: ASM-110-12/3.5
Type: Hydraulic
Year: New
SPECIFICATION:
Roll Length:…………….. 48”
Top Roll Diameter:……….. 4.33”
Rolling Cap. (Mild Steel):… .164” (8 GA) 35,000 PSI Yield Material
Pre-Bend Cap.(Mild Steel):… .135” (10 GA)35,000 PSI Yield Material
Min. Diameter (Rolling):….. 6.49”
Min. Diameter (Pre-Bend):…. 6.49”
Number of Rolls (Total):….. (3)
Number of Rolls (Powered):… (2)
Rolling Speed:…………… 15 FPM
Motor:………………….. 3 HP – 220/440V – 3 Phs
Weight:…………………. 2,600 Lbs
EQUIPPED WITH:
(3) Roll Initial Pinch
“Top” Pinch Roll …(Front Side)
“Motorized”
… Nonadjustable
“Bottom” Pinch Roll …(Front Side)
”Motorized”
”Hand Wheel” Adjustment
“Bottom” Forming Roll …(Rear Side)
“Non-Motorized”
“Hand Wheel” Adjustment
Mechanical Driven via Electric Motor & Gear Reducer
Manual “Swing-Out” of Top Roll
Manual Adjustment of Back / Forming Roll (Hand Wheel)
Precision Scales & Pointer Mounted on Frame for Roll Position (Pinch & Forming)
Pinch & Forming Rolls Incline for Cone Rolling
Cone Rolling Attachment
Manual Adjustment of Pinch Roll (Hand Wheel)
Movable Control Console Equipped with:
Foot Pedal Control of Roll Rotation
E-Stop Button
Machine Perimeter E-Stop Cable
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
Powered Adjustment Of Forming Role
Digital Readout For Forming Roll
Hardened Roles
Foot Pedal For Roll Rotation (In Lieu Of Push Buttons)
COMMENTS: Mfg. In Europe
