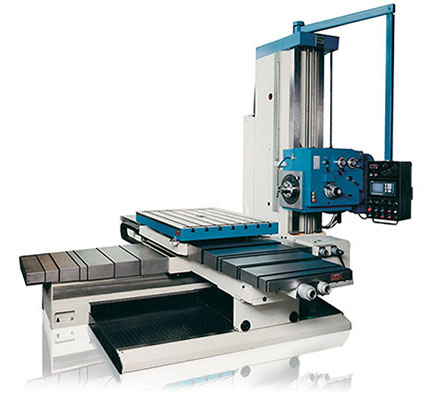

Model: HTM-4H
Type: Rotary Table
Year: New
SPECIFICATIONS:
Spindle Diameter………. 4.03”
Spindle Taper Cat……… Cat 50
Spindle Speeds (vs)……. 10-1800 Rpm
Spindle Travel………… 31.5”
Table Size (Rotary)……. 55” X 63” Rotary
Max. Weight On Table…… 13,200 Lbs
Cross Travel………(X).. 86.6”
Vertical Travel……(Y).. 78.74”
Longitudinal Travel..(Z).. 64.96”
Rapid Traverse………… 118 IPM
Motor Size……………. 22 HP – 220V – 3 PHS
Weight……………….. 42,900 Lbs
EQUIPPED WITH:
Bellville Washer Tool Clamping w/Hydraulic Unclamping
Meehanite Casting
Angular Contact Bearings on Main Spindle
(2) Stage Gearbox
Automatic Lubrication System
Hardened & Ground Box Ways
Independent Servo Motors & Drives
Ball Screws on Linear Axis
Siemens CNC Control
Hydraulic Clamping on all (5) Axis
Tool Clamping & Unclamping
Rotary Table Angular Encoder &
Digital Readout
Electronical Digital Readout
Coded Linear Scales On All Linear Axis
Pendant Stationw/Electronic Handwheel
Full Pendant Control Panel
Rigid Tapping
OPTIONAL ACCESSORIES:
Flood Coolant System
Thru Spindle High Pressure Coolant
Facing Head
Solid Steel Ways
Vertical Milling Head
Universal Milling Head
Tailstock w/Independent Drive & DRO
5” x 130” Boring Bar
4” x 130” Boring Bar
3-1/8” x 130” Boring Bar
Installation & Training
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B. Location
TERMS: Check w/Order
All prices subject to change without notice
