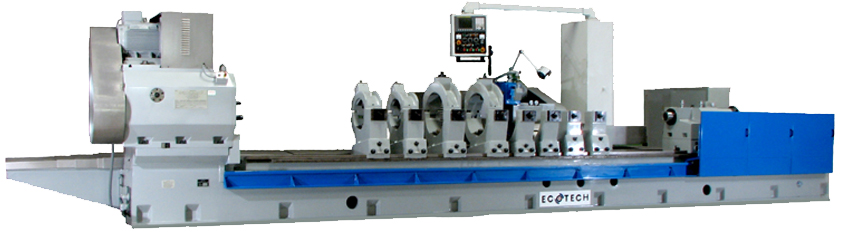

Model: GC25W-255
Type: “CNC” O.D. Grinder
Year: New
SPECIFICATIONS:
Swing Over Table………………….. 39.3”
Distance Between Centers…………… 255.9”
Max. Length Grinding Between Centers… 255.9″
Max. Diameter…………………….. 24.8
Center Height…………………….. 19.6″
Max. Workload…………………….. 13,236 Lbs
Wheel Size……………………….. 29.5″ x 3″ x 12″
Wheel Speed………………………. 1147 RPM
Wheel Head Power………………….. 24.8 HP – 220V – 3 Phs
Surface Speed…………………….. 8858 FPM
Traverse Speed……………………. 0.002 – 118 RPM
Max. Wheel Head Travel…………….. 275.5″
Table Angle………………………. 10 Deg. Slant
Drive Plate Speed..(VS)……………. 8 – 100 RPM
Spindle Taper…………………….. Dead
Tailstock Center………………….. #100 (Metric)
Quill Travel……………………… 3.93″
Power Supply……………………… 24.8 HP – 220V – 3 Phs
Weight…………………………… 69,390 Lbs
Dimensions……………………….. 125″L x 71″W x 66″H
EQUIPPED WITH:
Fanuc 0i-TC CNC Control:
8.4” LED Display
(2) Axis Controlled
(2) Axis Simultaneous
Editing During Operating
Feed Override
Rotary Encoder
G & M Coding
Macro B
USB / Flash / RS-232
Splash Guard
Carbide Tipped Centers
Open Type Steady Rest
Wheel Balancing Stand & Arbor
Standard & Peripheral Wheel Dresser
Flood Coolant System
Wheel Extractor & Hoister
Wheel Hub
Grinding Wheel
Work Light
Driving Dogs
Leveling Wedges
Measuring & Leveling Plate
Wrench Set
Operation & Maintenance Manuals
Service Spare Parts Kit
MACHINE FEATURES
(4) Different Grinding Programs:
Plunge-Plunge Grinding
Plunge-Traverse Grinding
Multi-Plunge Grinding
Traverse-Traverse Grinding
Automatic Grinding Cycle
Cast Iron Machine Base
V-Flat Guide Ways
10Ëš Slant Table
OPTIONAL ACCESSORIES: P.O.R.
Variable Speed (VDF)
Automatic Wheel Balance System
Paperless Filtration System
Live Center
Transformer for 440V
Diamond Rotary Disk Dresser
(1) Axis Feedback Scale
(2) Axis Feedback Scale
NOTE: Prices Upon Request
