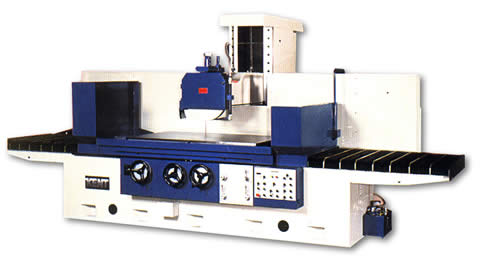

Model: KGS-930-AHD
Type: (3) Axis Automatic
Year: New
SPECIFICATIONS:
Table Size………………… 36” x 120”
Longitudinal Travel………… 128”
Cross Travel………………. 37-3/4”
Vertical Travel……………. 34-5/8”
Center Line Spindle To Table… 34-5/8”
Table Load w/Chuck…………. 6600 Lbs
Wheel Size………………… 20” x 2” x 5”
Motor Size Voltage…………. 15 HP – 220/440V – 3 Phs
Axis……………………… (3)Axis Automatic
Weight……………………. 43,600 Lbs
Dimensions………………… 284″L x 144″W x 113″H
STANDARD EQUIPMENT:
(2) 36” x 60” Electro-Magnetic Chuck
Variable Power Chuck Control
Magnetic Separator & Coolant System
Hydraulic Overhead Parallel Dresser
Full Length Rear Splash Guard
Wheel Balancing Base & Arbor
Grinding Wheel
Table Dresser
Wheel Flange
Tool Box & Tools
Halogen Work Light
MACHINE FEATURES:
(3) Axis Automatic
Cast Iron Base
Hydraulic Table
Vee & Flat Turcite Table Ways
Double-V Turcite Cross Ways
Solid-State Controlled Cross Feed
Auto Lube
Rapid Traverse To Wheel Head (AHD)
Auto Incremental Downfeed – Surface & Plunge Grinding
Precision Spindle – Angular Contact Bearings
OPTIONAL ACCESSORIES (P.O.R.):
Table Splash Guard (Rear)
Extra Wheel Flange
(1) Axis “Sony” Digital Readout Installed
Installation And Set-Up
