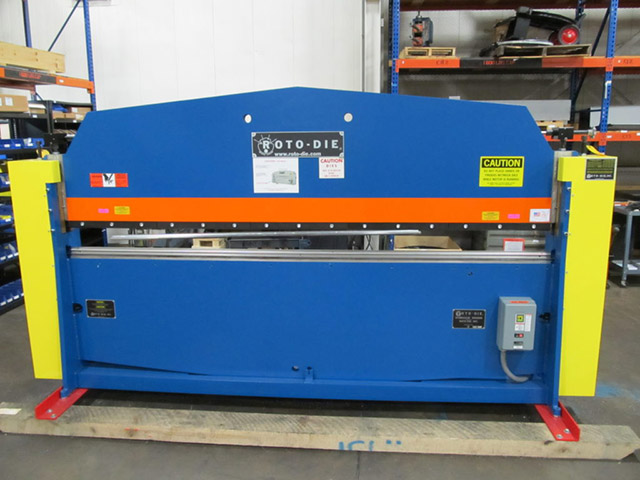

Model: 10
Type: Hydraulic
Year: New
SPECIFICATIONS:
Tonnage:……………… 36 Ton
Bending length ……….. 120”
Dist. Between Housings … 120”
Stroke Length ………… 3”
Ram Adjustment ……….. 3”
Press Speed ………….. 20 – 50 SPM
Motor Size …………… 7.5 HP – 230/460V – 3 Phs
Capacities …………… 10′ x 16 ga (Mild Steel)
Weight ………………. 5700 Lbs
Dimensions (LxWxH)…….. 145″ x 22″ x 63-1/2″
EQUIPPED WITH:
(1) #37 Roto-Die:
– 7° Cross-Braking Groove
– 85° Die Opening 3/8” Wide
– 85° Die Opening 7/8” Wide
– 30° Die Opening 1/2” Wide
(1) #1 Forming Die 85°
(1) #24 Hemming Die 30°
(1) #50 Sheet-Support Arms w/Clips
(6) #52 Gauging Blocks (6) #53 Disappearing Spring-Pin Gauges
EQUIPPED WITH:
(4) Precision Forming Tools in (1)
No Dies to Change
Preforms:
1) Full Length Ducts
2) Forming
3) Open Hemming
4) Standing Lock Seam
5) Louvre Blade Forming
6) Channel Forming
7) Box Forming
U.S.A. IMPORTER – DISTRIBUTION CENTER:
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
