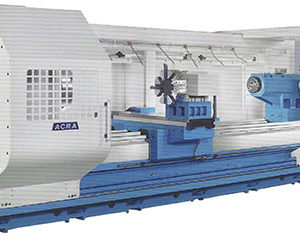

Model: KL-3260 … Centroid T-400i CNC Control
Spindle Hole: 4″
Year: New
Type: Flat Bed
SPECIFICATIONS:
Swing Over Bed:…………… 32”
Swing Over Cross Slide:……. 22.4”
Swing In Gap:…………….. No Gap
Dist Between Centers:……… 60”
Max. Turning Length:………. 51.2”
Spindle Nose:…………….. A2-11
Spindle Hole (Bar Capacity):.. 4”
Bed Width:……………….. 17-3/4”
Spindle Speeds:…………… 24 – 1500 RPM
Spindle Ranges:(3)………… Automatic
Tailstock Taper:………….. #5 MT
Rapid Traverse:…………… 240 IPM
Motor Size:………………. 15 HP -220V – 3 Phs
Control Type:…………….. Centroid T-400i
Weight:………………….. 9900 Lbs
Dimensions……………….. 140″(l) x 77″(w) x 70″(h)
EQUIPPED WITH:
Centroid T-400i Control
“Conversational”
“G” Code
15″ Color Monitor
RS-232 & Ethernet Ports
(1) GB Solid State Hard Drive
Totally Enclosure Guarding
Auto Lube System
Coolant System
Work Light
Tool Box w/ Tools
Leveling Bolts
Operation Manuals
MACHINE FEATURES
“Flat Bed Design
H & G Bed Ways
Dual Hand Wheels For Manual Operation
“Laser” Tested Accuracy
“T-Slotted” Rear Cross Slide
“Double Nut” Precision Ballscrews (H & G)
Meehanite Casting (1) Piece Construction
(3) Point Supported Spindle Using Precision Bearings
(3) Speed Geared Headstock – Automatic Shift
Tailstock (Manual)
OPTIONAL ACCESSORIES AVAILABLE … (P.O.R.)
SPINDLE HOLE UP GRADE
6” Spindle Hole (20 HP) (12 – 800 RPM)
9” Spindle Hole (25 HP) (6 – 450 RPM)
12” Spindle Hole (30 HP) (5 – 350 RPM)
CHUCK (STEEL BODY – PRECISION)
12” – 3 Jaw Chuck (4.05” Hole)
16” – 3 Jaw Chuck (5.11” Hole)
20” – 3 Jaw Chuck (7.48” Hole)
12” – 3 Jaw (Hydraulic) Chuck (4” Hole)
15” – 3 Jaw (Hydraulic) Chuck (6” Hole)
16” – 4 Jaw Chuck (3.93” Hole) w/Adaptor Plate.
20” – 4 Jaw Chuck (4.92” Hole)
25” – 4 Jaw Chuck (6.29” Hole) w/Adaptor plate.
OPTIONAL ACCESSORIES (CNC LATHE)
25” Face Plate
(5) Way Tool Post
Quick Change Tool Post w/(4) Holders
(8) Station “Automatic” Electric Turret (1” Tools)
(8) Station “Automatic” Hydraulic Turret (1” Tools)
Chip Conveyor … Chain Type:
Chip Conveyor … Screw Type:
(6.2” – 13.7”) Steady Rest (Roller Type)
(1.9” – 13.7”) Steady Rest (Roller Type)
(9” – 19”) Steady Rest (Roller Type)
Tail Stock (Hydraulic)
Programmable Quill For Tail Stock
(1.2″ – 9.8”) Follow Rest
OPTIONAL ACCESSORIES (CENTROID T-400i CONTROL)
Intercon Off-Line Programming (For Desktop PC)
Installation & Set-Up … $ 950 … Per Day Plus Expenses
Control Training … $ 950 … Per Day Plus Expenses
COMMENTS: Control Mfg. In USA
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
