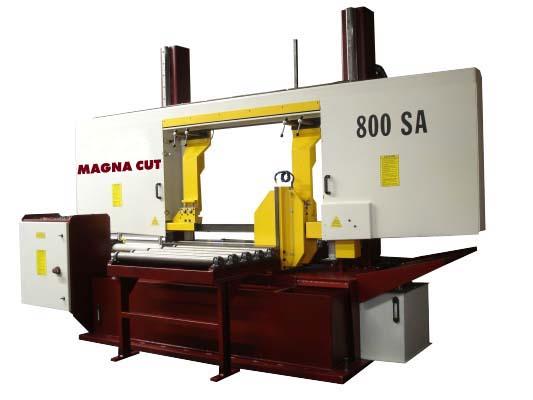

Model: 800-SA
Type: “Double Column” … “Semi-Automatic
Year: New
SPECIFICATIONS:
Cutting Capacity:
Rounds:
(Max. Height)… 32”
at 90 Degrees… 32”
Rectangle:
(Max. Width)…. 32”
at 90 Degrees… 32” x 32”
Blade Size:……….. 2-5/8” x 26’-6”’
Blade Speed:(VS)…… 60-400 FPM
Motor Size:……….. 10 HP – 460/575V – 3 Phs
Weight:…………… 8500 Lbs
EQUIPPED WITH:
Semi-Automatic Cut Cycle (Returns Automatically to Top Position)
10 HP – 460/575V – 3 PHS
Hydraulic Downfeed – 3 HP Motor
Sensor for Blade Overload
Hydraulic “Swivwl” Vise
Variable Blade Speed
Bi-Metal Blade
Heavy Duty Gear Box Design
Coolant Pump
12 Months Parts Warranty
OPTIONAL ACCESSORIES AVAILABLE (P.O.R.)
Laser Line Indicator
120” (10’) Conveyor
“Variable” Vise (Pressure)
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices are subject to change without notice
