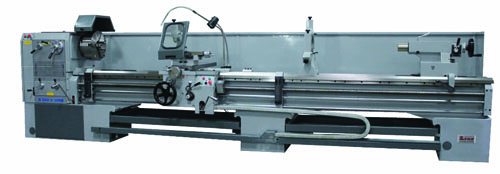

Model: 32157CU
Type: Geared Head Lathe
Year: New
SPECIFICATIONS:
Headstock…………….. Geared Head
Swing Over Bed:……….. 32”
Swing Over Cross Slide:… 21”
Swing In Gap:…………. 41”
Dist. Between Centers:…. 157”
Spindle Nose:…………. D1-15
Spindle Hole:…………. 6-1/16”
Bed Width:……………. 21-1/4”
Spindle Speeds(16)…….. 5.6 – 1000 RPM
Threading:……………. Inch/Metric
Motor Size:…………… 20 HP – 220V – 3 Phs
Tailstock Taper:………. #6 MT
Weight:………………. 17,100 Lbs
Dimensions……………. 236″(l) x 69″(w) x 69″(h)
EQUIPPED WITH:
15″ – 3 Jaw Chuck
24″ – 4 Jaw Chuck
Safety Guard for Chuck (will Accommodate 4 Jaw Chuck)
Lathe Will Only Start if Guard is Over Chuck
Splash-Chip Guard
Oil Pressure Sight Glasses
9″ Steady Rest w/Rollers
Follow Rest
Work Light
Leveling Screws
Inch/Metric Dials
Coolant Pump
MACHINE FEATURES
6-1/16″ Spindle Hole
“Monoblock” Solid Cast Bed
Gap Bed Design
H & G Head Stock Gears
H & G Bedways
Inch Metric Threading
(4) Way Rapid Traverse
Precision SKF Spindle Bearings
Tag Along Tailstock (for Power Drilling/Boring)
“Double Multi Disc” Clutch & Brake
Override Safety Clutch
Direct Reading Cross Slide Dial
Cut Away in Ways for Coolant
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
18″ Face Plate
6″ Steady Rest w/Rollers
8″ Steady Rest w/Rollers
12″ Steady Rest w/Rollers
Taper Attachment
Aloris Quick Change Toolpost Set
(2) Axis Newall Digital Readout (Installed)
COMMENTS: Mfg. In Europe
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
