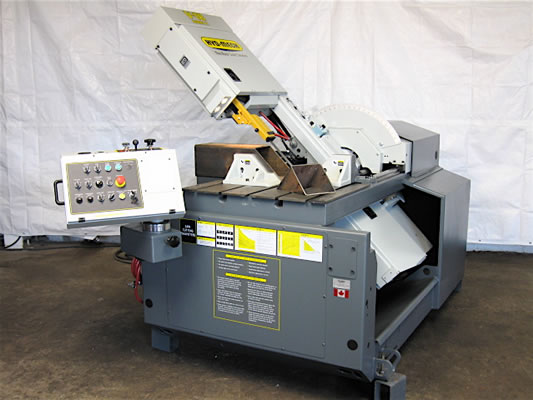

Model: V-18
Type: Automatic “Tilt Frame”
Year: New
SPECIFICATIONS:
Cutting Capacities:
Degree Retangle Round
At 90…… 31″ x 18″ 17.5″
At 45 (L&R) 21″ x 18″ 17.5″
6 Degree Canted Head (Optional):
Retangle Round
At 90…… 28″ x 18″ 17.5″
Blade Size…………… 1-1/4” x 16’11”
Blade Speed (VS)……… 65 – 385 SFM
Table Heigth…………. 38″
Motor Size…………… 7.5 HP – 240/480V – 3 Phs
Weight:……………… 7500 Lbs
Dimensions (LxWxH)……. 112″ x 168″ x 97″
EQUIPPED WITH:
(2) Full Stroke Hydraulic Vise
Operator Control Console
Coolant System w/Wash Down Hose
Powered Blade Brush
Blade Breakage Switch
Easy to Read Angle Scale
Digital Angle Display
Laser Light
Work Light
MACHINE FEATURES:
“Manual” Head Tilt – 45 Degree (Left & Right)
“Hydraulic” Head Advance & Retract
“Hydraulic” Heavy Duty Guide Arms
“Hydraulic” Blade Tension
Linear Bearings & Guides
Heavy Carbide Guides
Heavy Duty Gear Box
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Tall Square Vise Insert
Chip Bucket
Hydraulic Overhead Bundling
Variable Vise Pressure
Non Driven Pop Up Roller
Mist Lubrication System
Drag Chain Chip Conveyor (Hand Crank)
Hydraulic Chip Conveyor Drive (Only w/Drag Chain Option)
6 Degree Forward Canted Head
Idler Conveyor (5’ Section)
Idler Conveyor (10’ Section)
COMMENTS: Mfg. in North America
