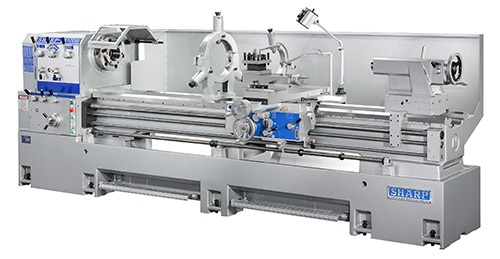

Model: 30160-B
Type: Geared Head
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 30”
Swing Over Cross Slide… 21”
Swing in Gap…………. 39”
Dist Between Centers….. 160”
Spindle Nose…………. D1-11
Spindle Hole…………. 4-1/2”
Bed Width……………. 15-3/4”
Spindle Speeds(12)……. 10 – 1000 RPM
Threading……………. Inch/Metric
Motor Size…………… 15 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Gross Weight…………. 10,980 Lbs
Dimensions…………… To be Advised
EQUIPPED WITH:
16″ – 4 Jaw Chuck
(4) Way Toolpost
Coolant System
Splash Guard
Chuck Guard
(3/4″ – 9″) Steady Rest
18″ Face Plate
(4) Way Carriage Stops
Thread Dial
Rapid Traverse
Tailstock
Halogen Work Light
Tool Kit & Manuals
MACHINE FEATURES
4-1/2″ Spindle Hole
Gap Bed Design
Quick Change Gear Box
H & G Headstock Gears
H & G Bedways
(1) Piece Cast Meehanite Bed
OPTIONAL ACCESSORIES:
12″ – 3 Jaw Bison Chuck (4.05” Bore)
16″ – 3 Jaw Bison Chuck (5.34” Bore)
20″ – 3 Jaw Bison Chuck (7.48” Bore)
25″ – 3 Jaw Bison Chuck (7.60” Bore)
16″ – 4 Jaw Bison Chuck
20″ – 4 Jaw Bison Chuck
25″ – 4 Jaw Bison Chuck
Micrometer Carriage Stop
Taper Attachment
Roller Jaws for Steady Rest
15″ Steady Rest
5C Collet Set (1/8″ – 1-1/8″ x 1/16″)
5C Lever Collet Closer
“Aloris Type” Q.C. Tool Post w/(7) Holders
14N Jacobs “Ball Bearing” Chuck w/Arbor (0″ – 1/2″ Capacity)
#5 MT Live Center
Newall Digital Readout
