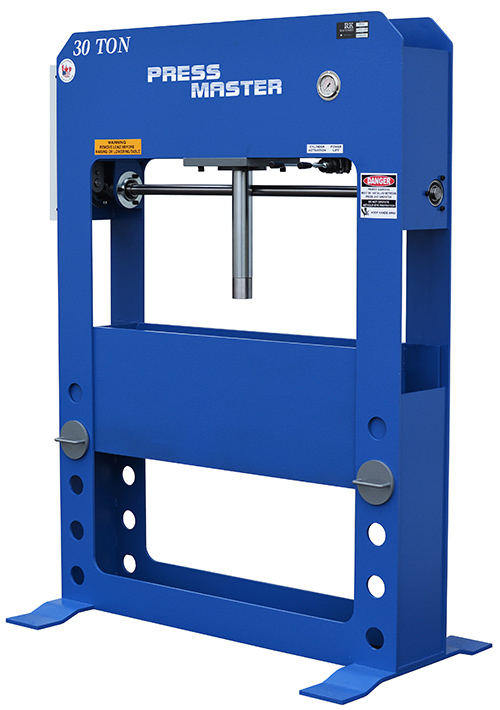

Model: HFP-30
Type: Electric Over Hydraulic
Year: New
SPECIFICATIONS:
Capacity…………….. 30 Ton
Stroke………………. 12″
Bore………………… 5″
Ram Speed Advance…….. 29″ IPM
Ram Speed Return……… 38″ IPM
Dist. Between Posts…… 42″ (R to L)
Dist. Between Posts…… 9″ (F to B)
Maximum Dist. Bed to Ram. 34″
Motor……………….. 5 HP – 230V – 1 Phs
Dimensions…………… 75″(H) x 54″(W) x 30″(D)
Weight………………. 1,400 Lbs
EQUIPPED WITH:
Double Acting Cylinder – Permits Pulling & Pressing
Hydraulic Power Lift Table
Electric/Hydraulic Operation
Heavy Duty Steel Structure
Open Sides To Facilitate Work On Long Pieces
Flat Ram Nose
Cylinder Activation Is Fingertip Controlled
Self Locking Table
(10) Gallon Hydraulic Oil Reservoir
Low Pressure Hydraulic System
OPTIONAL ACCESSORIES: (P.O.R.)
Foot Pedal-Electric Solenoid Valve
Adjustable Stroke Control W/Foot Pedal
V-Blocks
Pressure Regulator – Limits Ram Pressure
Front Safety Guard
18” Stroke Cylinder
24” Stroke Cylinder
COMMENTS: Mfg. in U.S.A.
