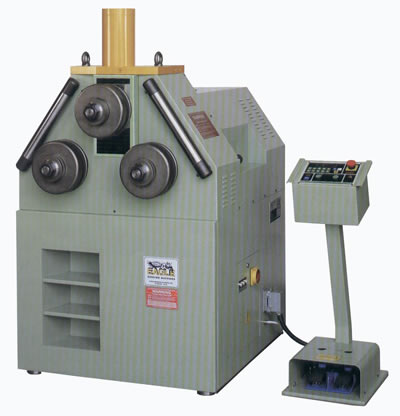

Model: CP60-H
Type: Single Pinch
Year: New
SPECIFICATIONS:
Shaft Diameter:……. 2.375”
Roll Diameter:…….. 8.843”
Driven Rolls:……… 2
Rolling Speed:…….. 14 FPM
Work Plane:……….. Horizontal/Vertical
Adjustable Rolls:….. 4” x 15ga x 72” Dia
Motor:……………. 3.4 HP – 220V – 3 Phs
Weight:…………… 2,850 Lbs
CAPACITIES:
Flats Hard……… 3-1/4” x 5/8” x 32” Dia
Flats Easy……… 4-3/4” x 7/8” x 26” Dia
Square Bar……… 1-3/4” x 30” Dia
Angle Leg Out…… 3” x 1/4” x 30” Dia
Angle Leg In……. 2-1/2” x 5/16” x 34” Dia
Tee Leg Out…….. 3” x 5/16” x 32” Dia
Tee Leg In……… 3” x 5/16” x 40” Dia
Channel Leg Out…. 4-1/2” x 2” x 32” Dia
Channel leg In….. 4-1/2” x 2” x 36” Dia
Round Bar………. 2” x 28” Dia
Pipe…………… 2-1/2” x 36” Dia
Tubing Round……. 4” x 15ga x 72” Dia
Tubing Square…… 2-1/2” x 11ga x 48” Dia
Tubing Rectangle… 1-1/4” x 3” x 1/8”
EQUIPPED WITH:
(3) Roll Single Pinch
(2) Powered Lower Rolls
Hydraulic Adjustment of the Top Roll
Movable Control Console with:
Push Button Controls
LED Display of Top Roll Position
Automatic Position Repeat System (40 Preset Memory)
Integral Hydraulic Unit
Forward & Reverse Rolling
Foot Pedal Rotation Control
Combination Horizontal/Vertical Positions
Hardened Shafts
Self Aligning Roller Bearings
Rugged Steel Frame
Knurled Lower Rolls
Safety Indicator Lights
Thermal Overload Relay
Dual E-Stop Switches
(2) Multi-Positional Lateral Guides w/Thrust & Rake Angle Settings
Service Tools
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B. Location
TERMS: Check w/Order
All prices subject to change without notice
