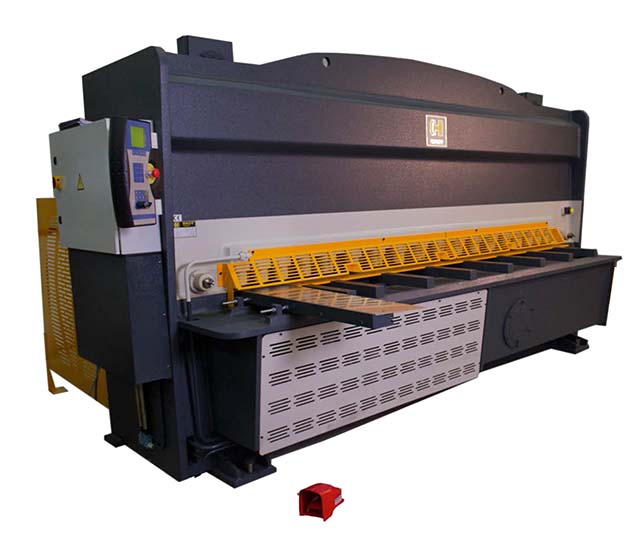

Model: HDSX 12′ x 3/8″
Type: “CNC” Hydraulic
Year: New
SPECIFICATIONS:
Length of Cut:……….. 159”
Max. Thickness of Cut:… 3/8”
Strokes per Minute:…… 7 – 11 SPM
Motor Size:………….. 25 HP – 220/440V – 3 Phs
Weight:……………… 26,600 Lbs
Dimensions…………… 207″L x 138″W x 95″H
SHEAR CAPACITIES:
Mild Steel ………….. 3/8”
Stainless …………… 1/4″
Aluminum ……………. 1/2”
STANDARD EQUIPMENT:
40” Squaring Arm w/Flip Over Stop
39″ Front Operated Power Backgauge
Shadow Light
Remote Foot Pedal Control
Hi Carbon … Hi Chrome (4) Edge Blade
NOTE: Hydraulic Oil “Not Included”
MACHINE FEATURES:
Guillotine Design – 60,000 PSI
“Top Driven” Hydraulic Cylinder
(3) Position Manual Blade Gap Adjustment (Front Operated)
Electro-Hydraulic Rake Adjustment w/Digital Readout
Steel Welded Construction
“Hold Down” Pressure – Independent from Shear Pressure
SC100T CNC CONTROL:
5.7” Color Grap0hic LCD Display w/Touch Screen
Automatic/Manual Programming
Up to 500 Programs w/255 Steps
Absolute/Incremental Backgauge
Inch / Metric
Language Support
SBS on Plate Support System
USB Onboard
Backlash Compensation
Automatic Thickness Correction
Automatic Retraction
Blade Gap Adjustment
Stroke Adjustment
Preset Counter
OPTIONAL ACCESSORIES AVAILABLE:
Available on Request
COMMENTS: Mfg in Europe
A “U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
