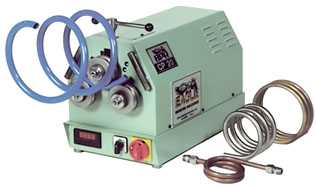

Model: CP-20
Type: Single Pinch
Year: New
SPECIFICATIONS:
Shaft Diameter:……. 75”
Roll Diameter:…….. 3.375”
Driven Rolls:……… 2
Capacities:
Flats Hard……… 1” x 1/4” x 8” Dia
Flats Easy……… 1-3/4” x 3/8” x 12” Dia
Square Bar……… 1/2” x 6” Dia
Angle Leg Out…… 3/4” x 1/8” x 8” Dia
Angle Leg In……. 3/4” x 1/8” x 10” Dia
Tee Leg Out…….. 1” x 8” Dia
Tee Leg In……… 1” x 10” Dia
Channel Leg Out…. 1-1/4” x 10” Dia
Channel Leg In….. 1-1/4” x 12” Dia
Round Bar………. 1/2” x 5” Dia
Pipe…………… 1/2” x 14” Dia
Tubing Round……. 1” x 16” Dia
Tubing Square…… 3/4” x 1/16” x 12” DIa
Tubing Rectangle… 1-1/4” x 3/8” x 1/16”
Rolling Speed:…….. 10 FPM
Work Plane:……….. Horizontal
Adjustable Rolls:….. 1” x 16” Dia
Motor:……………. 44 HP – 220V – 3 Phs
Weight:…………… 132 Lbs
EQUIPPED WITH:
(3) Roll Single Pinch
Mechanical Drive
Manually Adjustable Top Roll
(2) Powered Lower Rolls
Bench Mount
Hardened Shafts
Self Aligning Roller Bearings
Rugged Steel Frame
Knurled Lower Rolls
LED Readout of Top Roll Position
(2) Multi-Positional Lateral Guides
Service Tools
