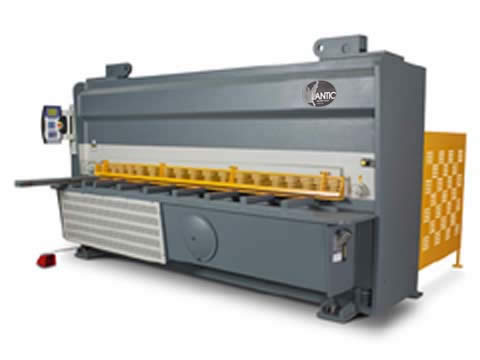

Model: HDS 10’ x 3/4”
Type: Hydraulic … Guillotine Style
Year: New
SPECIFICATIONS:
Length of Cut:……….. 122”
Max. Thickness of Cut:… .750” (3/4”)
Strokes per Minute:…… 5-10
Motor Size:………….. 75 HP – 220/440V – 3 Phs
Weight:……………… 57,200 Lbs
CAPACITIES:
Mild Steel …….. 3/4”
Stainless ……… 7/8”
Aluminum ………. 1
EQUIPPED WITH:
Guillotine – Over Driven By (2) Top Cylinders
“Steel Welded” Construction
Manual Blade Gap Adjustment (Rear Operated)
48” Front Operated Power Back Gauge (Swing Away)
(4) Edge…Hi-Carbon, Hi-Chrome Blade
40” Squaring Arm w/T-Slot, Scale, & Tilting Stop
Foot Pedal Control
SP8 Control Features:
Key Switch to Switch on the Control
LED Readout of the Back Gauge Dimension
LED Readout of the Rake Angle
Programmable Back Gauge
0.004” Accuracy
Backlash Compensation
Programmable Rake Angle of the Top Blade
Preset of the Back Gauge
Back Gauge Retraction
Part Counter
Manual Setting of the Blade Clearance by Hand Level
Emergency Stop Button on the Control
Stroke Control
COMMENTS: Mfg In Europe
