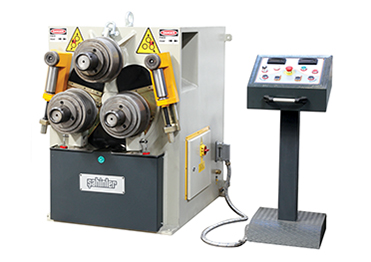

Model: ARS-3.5″ … HPK-80
Type: Double Pinch
Year: New
SPECIFICATIONS:
Shaft Diameter……. 3.15”/2.76”
Roll Diameter…….. 9.6”
Driven Rolls……… 3
Rolling Speed (VS)… 13 FPM
Work Plane……….. Horizontal / Vertical
Adjustable Rolls….. 3
Motor……………. 5-1/2 HP – 220/440V – 3 Phs
Weight…………… 3750 Lbs
CAPACITIES:
Flats Hard……….. 3-1/8” x 5/8” x 28” Dia
Flats Easy……….. 5” x 1” x 24” Dia
Square Bar……….. 1-3/4” x 20” Dia
Angle Out………… 3-1/8” x 3-1/8” x 5/16” x 32″ Dia
Angle In…………. 2-3/4” x 2-3/4” x 1/8” x 28”
Tee Out………….. 3-1/8” x 3/8” x 32” Dia
Tee In…………… 2-3/4” x 5/16” x 32” Dia
Channel Out………. 4” x 24” Dia
Channel In……….. 4” x 20” Dia
Round Bar………… 2” x 20” Dia
Pipe Sch. 40……… 3” x 28” Dia
Tubing Round……… 4” x 12 Ga x 48” Dia
Tubing Square…….. 2-3/4” x 1/8” x 52” Dia
Tubing Rectangle….. 3-1/8” x 1” x 1/8” x 32” Dia
EQUIPPED WITH:
Moveable Push Button Console
Digital Readout
Emergency Stop
Cabinet Base w/Door
Set of Universal Tooling
MACHINE FEATURES
Double Pinch
H & G Shafts & Gears
Horizontal/Vertical
Rugged Steel Frame
(3) Driven Rolls
Hydraulic Adjustment of Top Roll
Manual Adjustment Of Guide Rolls
OPTIONAL ACCESSORIES:
Variable Speed – 1 Phs
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
