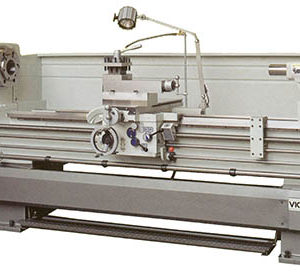

Model: 2900-T
Type: Heavy Duty Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 29-1/8”
Swing Over Cross Slide… 20-1/2”
Swing in Gap…………. 37-25/32
Dist Between Centers….. 170”
Max Turning Length……. 167”
Spindle Nose…………. D1-11
Spindle Hole…………. 4-1/8”
Bed Width……………. 16-1/2”
Spindle Speeds(12)……. 25 – 1200 RPM
Threading……………. Inch/Metric
Motor Size…………… 20 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Gross Weight…………. 11,400 Lbs
Shipping Dimensions…… To Be Advised
EQUIPPED WITH:
MACHINE FEATURES:
4-1/8” Spindle Hole
Tail Stock … (2) Speed
(4) Way Rapid Traverse
Magnetic Foot Brake
“Meehanite Casting” Bed
H & G Gears & Head Stock
Gap Bed
Jog Button For Speed Changes
Ridge Compound For Heavy Cutting
Spindle Supported By (3) Precision Bearings
STANDARD EQUIPMENT:
20” – 4 Jaw Chuck
(3” – 10”) Steady Rest
(4) Way Tool Post
Face Plate
Coolant System
Chuck Cover w/Limit Switch
Thread Dial
Tool Box w/Tools
Work Light
OPTIONAL EQUIPMENT:
15” – 3 Jaw Chuck
15” – 3 Jaw Chuck (Zero Set)
20” – 3 Jaw Chuck
20” – 4 Jaw Chuck
Taper Turning Attachment
Splash Guard – Full Length
Halogen Work Light
Quick Change Tool Post w/5 Holders
(2) Axis Newall DRO – Installed
COMMENTS:
“USA” IMPORTER … DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
