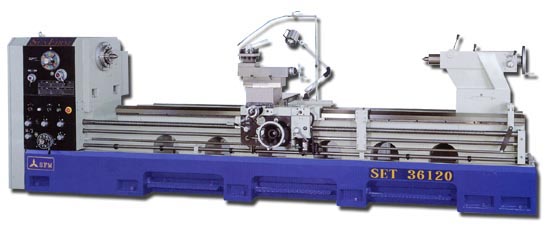

Model: SET
Type: Geared Head
Year: New
SPECIFICATIONS:
Swing Over Bed……….. 28”
Swing Over Cross Slide… 20”
Swing in Gap…………. 40”
Dist Between Centers….. 120”
Spindle Nose…………. A2-11
Spindle Hole…………. 6”
Bed Width……………. 18”
Spindle Speeds……….. 15 – 1000 RPM
Threading……………. Inch/Metric
Motor Size…………… 25 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Gross Weight…………. 14,500 Lbs
EQUIPPED WITH:
20” – 3 Jaw Chuck
Steady Rest
Follow Rest
(4) Way Tool Post
(4) Way Rapid Traverse
Inch/Metric Dials
Thread Chasing Dial
Full Length Splash Guard
Halogen Light
Coolant System
Tool Box w/Tools
MACHINE FEATURES:
6” Spindle Hole
Gap Bed Design
Spindle Clutch & Brake
Geared Head
​Rear Chuck Mount
Automatic Lubrication
Solid Cast Iron Base
H & G Headstock, Gears & Bed Ways
OPTIONAL ACCESSORIES (P.O.R.):
20″ – 4 Jaw Chuck
25″ – 4 Jaw Chuck
20” Steady Rest
Face Plate
Quick Change Toolpost
Taper Attachment
Newall Digital Readout
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
