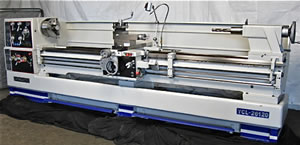

Model: YCL SERIES
Type: Engine Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 26”
Swing Over Cross Slide… 17-1/2”
Swing in Gap…………. 36”
Dist Between Centers….. 60”
Spindle Nose…………. D1-8
Spindle Hole…………. 4-1/8”
Bed Width……………. 16”
Spindle Speeds(12)……. 25 – 1600 RPM
Threading……………. Inch / Metric
Motor Size…………… 10 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Weight………………. 5400 Lbs
Dimensions…………… To be Advised
EQUIPPED WITH:
STANDARD FEATURES
12″ – 3 Jaw “Semi-Steel” Chuck
16″ – 4 Jaw “Cast Iron” Chuck
Follow Rest
7” Steady Rest w/Rollers
18” Face Plate
(4) Way Tool Post
(4) Position Auto “Kick Out” Longitudinal Carriage Stop
Thread Dial
Taper Turning Attachment
Splash & Chip Guard (Full Length)
Coolant Pump
Halogen Work Light
Leveling Screws
OIL Pressure Sight Glasses
Tool Box w/Tools
MACHINE FEATURES
4-1/8” Spindle Hole
Multi Disc Clutch
Foot Brake
Gap Bed Design
Geared Head
H & G Headstock, Gears & Bed Ways
“OPTIONAL ACCESSORIES” AVAILABLE:
12” – 3 Jaw “Set Tru” Chuck
12” – 6 Jaw “Set Tru” Chuck
16” – 4 Jaw (Steel) Chuck
(12”) Steady Rest (Roller Jaws)
Aloris Q.C. Tool Post w/5 Holders
Newall DRO … (Installed)
COMMENTS:
“USA” IMPORTER … DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
