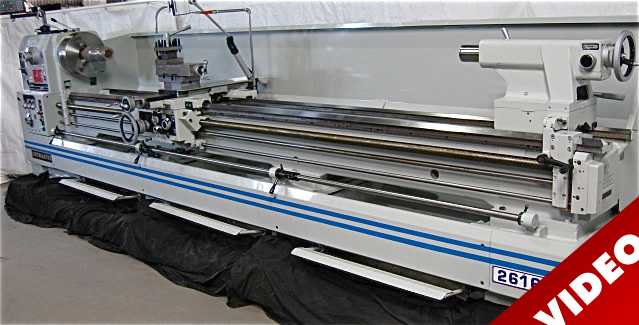

Model: ACH
Type: Precision Geared Head
Year: New
SPECIFICATIONS:
Headstock…………….. Geared Head
Swing Over Bed………… 26”
Swing Over Cross Slide…. 17-1/2”
Swing in Gap………….. 35”
Dist. Between Centers….. 60”
Spindle Nose………….. D1-11
Spindle Hole………….. 4-1/16”
Bed Width…………….. 16”
Spindle Speeds (12)……. 13 – 1200 RPM
Threading…………….. Inch/Metric
Motor Size:…………… 15 HP – 220/440V – 3 Phs
Tailstock Taper:………. #5 MT
Weight:………………. 6700 Lbs
Dimensions……………. To be Advised
EQUIPPED WITH:
15” – 3 Jaw Chuck
Splash Guard (Full Length)
(4) Way Toolpost
(1.6″ – 10″) Steady Rest
Coolant System
Haologen Work Light
MACHINE FEATURES:
4-1/16″ Spindle Hole
Cast Iron Bed
30″ Swing in Gap
H & G Headstock & Gears
H & G Bedways
Inch-Metric Gearbox
Precision Spindle Bearings
(2) Speed Tailstock
Crriage Automatic “Kick-Out” Stops
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
16” – 4 Jaw Chuck (4.13” H)
20” – 4 Jaw Chuck (4.175” H)
Chuck Guard
Turret Carriage Stop
#5 Live Center
20″ Follow Rest
Taper Attachment (Installed)
(7-12” – 15”) Steady Rest (Roller Type)
Quick Change Tool Post w/Holders
Newall Digital Readout (Installed)
