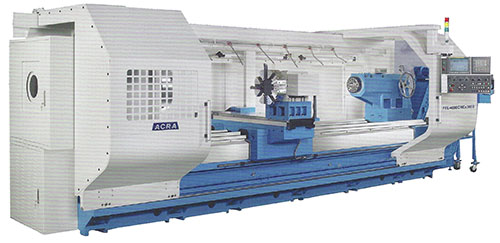

Model: CL-38A
Spindle Hole: 7.1″
Year: New
Type: Hollow Spindle CNC Flat Bed
SPECIFICATIONS:
Swing Over Bed……………… 26”
Swing Over Cross Slide………. 14-1/2”
Swing In Gap……………….. No Gap
Dist Between Centers………… 160”
Max. Turning Length…………. 160”
Spindle Nose……………….. A2-11
Spindle Hole……………….. 7.1”
Bed Width………………….. 18”
Spindle Ranges……………… 2
Spindle Speeds……………… 6 – 2000 RPM
Tailstock Taper…………….. #5 MT
Rapid Traverse……………… Yes
Motor Size…………………. 30 HP – 220V – 3 Phs
Control Type……………….. Fanuc OiTD
Weight…………………….. 19,845 Lbs
Dimensions…………………. To be Advised
EQUIPPED WITH:
Fanuc Oi-TD CNC Control
NOTE: With Manual i Guide
10.4” LCD Monitor
T-Slotted Cross Slide
Chuck Ready (Front & Back)
V-8 Turret (Front) or Choice of H-4 or H-6 Turret (Rear)
10” Steady Rest
Two Doors
Full Length Splash Guard
Auto Lubrication
Coolant System
Chip Conveyor (Rear)
Chip Cart
Halogen Light
Tailstock (Movable) via Carriage
Hydraulic Tailstock w/Built in Center
MACHINE FEATURES:
Mazak Design – “Flat Bed”
7.1″ Spindle Hole
Heavy Duty (2) Step Transmission w/Helical Reducing gear for Heavy Duty Cuts
Rigid Construction (Meehanite Casting)
Double V-Slideways
Foundation Pads
Parts – Operation Manuals
OPTIONAL ACCESSORIES:
25” – 3 Jaw “Hydraulic” Chuck
25” – 3 Jaw “Pneumatic” Power Chuck
25” – 3 Jaw “Manual” Chuck (9.2” Hole Bison)
25” – 4 Jaw “Manual” Independent Chuck (10.5” Hole Bison)
7” Steady Rest w/Rollers (Minimum Capacity 1.2”)
10” Steady Rest w/Rollers (Minimum Capacity 1-1/2”)
16” Steady Rest w/Rollers (Minimum Capacity 7-1/2”)
Without Front or Rear Turret…(Less)..$ 5,000
V12 Front Turret w/Live Tooling (”No” Tool Holders)
Chip Conveyor (Back) (Standard)
V8 Station Vertical Turret
Boring Bar Sleeve (3/8”, 1/2”, 5/8”, 3/4”, 1” & 1-1/4”)
Drill Sleeve (MT #3 or MT #4)
Boring Bar Holder (1-1/2”)
Facing Tool Holder
H4/H6 Horizontal Turret
Boring Tool Holders (3/4”, 1”, 1-1/4” & 1-1/2”)
Drill Sleeve (#3 MT or #4 MT)
I.D. Tool Holders (2-1/2” Dia. & 3” Dia)
COMMENTS:
“USA” IMPORTER DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices are subject to change without notice
