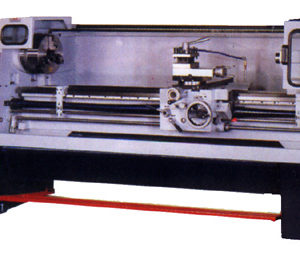

Model: GT Series
Type: Geared Head
Year: New
SPECIFICATIONS:
Swing Over Bed:……….. 26”
Swing Over Cross Slide:… 16-1/2”
Swing In Gap:…………. 34-1/2”
Dist. Between Centers:…. 120”
Spindle Nose:…………. D1-8
Spindle Hole:…………. 4-1/8”
Bed Width:……………. 15-1/2”
Spindle Speeds (12)……. 30 – 1600 RPM
Threading:……………. Inch / Metric
Motor Size:…………… 15 HP – 220/440V – 3 Phs
Tailstock Taper:………. #5 MT
Weight:………………. 9350 Lbs
Dimensions……………. To be Advised
STANDARD EQUIPMENT:
12” – 3 Jaw (Steel) Chuck w/Reversible Jaws
20” – 4 Jaw (Steel) Chuck
25” Face Plate
10” Drive Plate
(6-3/4” – 12-1/2”) Steady Rest (Roller Bearing)
(1” – 3”) Follow Rest
(4) Way Toolpost
(4) Way Rapid Traverse
Inch/Metric Dials
Thread Chasing Dial
Taper Attachment
Section Splash Guard
(2) Dead Centers & (1) Reducing Sleeve
Foot Brake
Halogen Work Light
Coolant System
Tool Box w/Tools
MACHINE FEATURES:
4-1/8″ Spindle Hole
Gap Bed Design
Spindle Clutch & Brake
NOTE: Motor does not turn “Off” when
going from Forward to Neutral …
(8) Times the Motor Life
Geared Head
Automatic Lubrication
Solid Cast Iron Base
H & G Headstock, Gears & Bedways
OPTIONAL ACCESSORIES (P.O.R.):
Full Length Splash Guard
(3/4″ – 5″) Steady Rest w/Brass Tips
(10″ – 15″) Steady Rest w/Brass Tips
#5 MT Live Center
Leveling Pads
Newall Digital Readout
