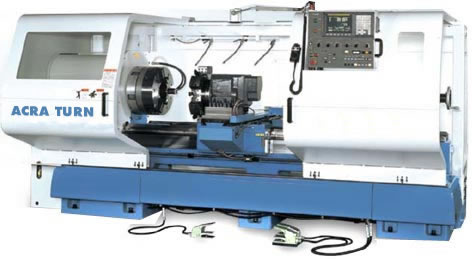

Model: FCH-26 … Fanuc Oi-TD CNC Control
Spindle Hole: 4.72”
New: New
Type: Flat Bed
SPECIFICATIONS:
Swing Over Bed:……….. 25.9”
Swing Over Cross Slide:… 14.5″
Dist Between Centers:….. 120” – 160”
Max. Turning Length:…… 120” – 160”
Spindle Nose:…………. A2-11
Spindle Hole:…………. 4.72” w/Pneumatic Chuck
Bed Width:……………. 18”
Spindle Speeds:……….. 6 – 2000 RPM
Spindle Ranges:(2)…….. Automatic
Tailstock Taper:………. #5 MT
Rapid Traverse:……….. 394 IPM
Motor Size:…………… 25/30 HP-440V-3 Phs
Control Type:…………. Fanuc Oi-TD
Weight:………………. 17,800 – 18,800 Lbs
Dimensions……………. To be Advised
EQUIPPED WITH:
Fanuc Oi-TD Control
(V-8) Vertical
(8) Station Servo Turret
Hydraulic Tail Stock Quill
Work Light
1.5” To 10” Steady Rest-Roller Style
Hydraulic System Ready To Accept An Optional Hydraulic Chuck
Double Doors
Constant Surface Speed
Self Diagnostic Functions
Background Editing
Hour Meter And Parts Counter
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
1.57” – 10” Steady Rest (Roller Bearing)
7.48” – 15.9” Steady Rest (Roller Bearing)
1.2” – 7” Follow Rest
Transformer for 440V
12.5” – 3 Jaw Hydraulic Chuck (5” Bore)
15″ – 3 Jaw Hydraulic Chuck
4.1 “ Tubing SMW Air Chick
7.3” Tubing SMW Air Chuck
19” SMW Air Chuck (7.3” Bore)
13” SMW Air Chuck (4.13 Bore)
SMW Air Chuck Installing (Per Chuck)
V- Front Turret w/Live Tooling w/Spindle Mechanic Orientation (5 Degree, 72 Positions)
Note: Does not Included Tool Holders for (8) Station Vertical Disc Turret (V-8)
Boring Bar Sleeve (3/8”, 1/2”, 5/8” , 3/4”, 1”, & 1-1/4”
Drill Sleeve (MT #3 or MT #4)
Boring Bar Holder (1-1/2”)
Facing Tool Holder
For Horizontal Hydraulic Turret (H-4 & H-6)
Boring Bar Sleeve (3/4”, 1”, 1-1/4”, & 1-1/2”
Drill Sleeve (MT #3 or MT #4)
ID Tool Holder (2-1/2” & 3”) … (H-4 Only)
