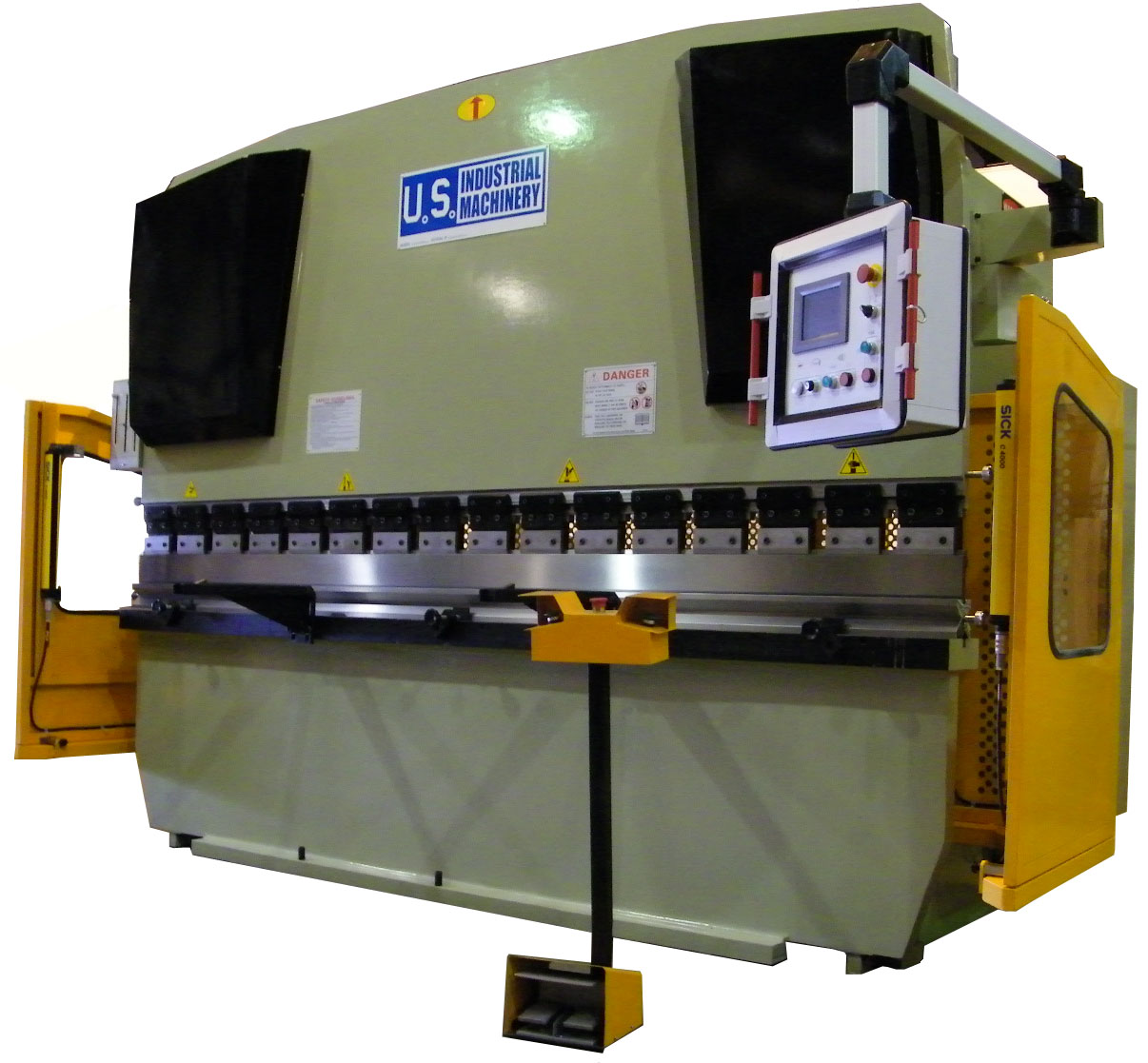

Model: 13/250
Type: Hydraulic
Year: New
SPECIFICATIONS:
Tonnage…………….. 250 Ton
Bed Length………….. 157.4”
Dist Between Housings… 124”
Throat Depth………… 15.7”
Stroke Length……….. 3.14”
Ram Adjustment………. 7.8”
Fast Approach Speed….. 2.4” / Sec
Fast Return Speed……. 2.0” / Sec
Motor Size………….. 25 HP – 220/440V – 3 Phs
Weight……………… 39,685 Lbs
Dimensions (LxWxH)…… 179″ x 75″ x 108″
CAPACITY (Mild Steel):
13′ x 5/16″
10′ x 3/8″
8′ x 1/2″
6′ x 3/4
EQUIPPED WITH:
Power Backgauge w/Digital Readout
Power Ram Adjustment w/Digital Readout
Manual Bed Crowning
Foot Pedal
(8) Way Bottom Die
(1) Gooseneck Top Punch
“Sick” Light Curtain
MACHINE FEATURES
Hydraulic Cylinders
Ram Depth Stops – Located In Hydraulic Cylinders (Motorized/Mechanical)
24” Front Operated Power Backgauge
(3) Speed Ram – Approach, Forming & Return
Note: Speed Change “Points” Are Set Manually
Down Acting Ram Guided By “Anti-Friction” Ways
Torsion Bar Provides Ram Cylinder Parallelism
Floor Mount
Dwell Timer at Bottom of Ram
OPTIONAL ACCESSORIES:
Pilz Laser Guard
(3) Axis “R” CNC Control of Backgauge Finger Height
“High Speed” Servo Backgauge
Installation & Training:
COMMENTS:
