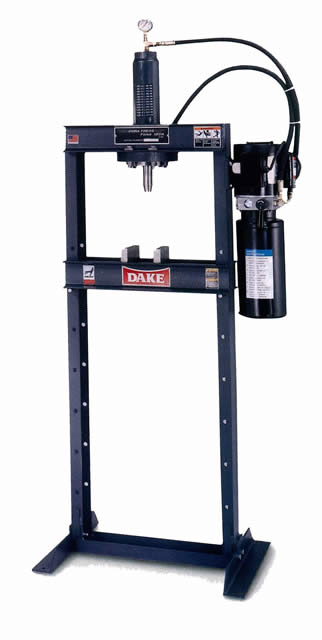

Model: Force 25-DA
Type: Motorized H-Frame
Capacity: 25 TON
Year: New
SPECIFICATIONS:
Capacity…………….. 25 Ton
Ram Travel…………… 10”
Ram Speed……………. 10 IPM
Minimum Ram To Table….. 8”
Maximum Ram To Table….. 44”
Between Uprights……… 28”
Between Table Channels… 7”
Motor……………….. 1 HP – 110V – 1Phs
Weight………………. 550 Lbs
EQUIPPED WITH:
(2) Combination Table Plates / V-Blocks
Pressure Gauge
Safety Relief Valve
Double Acting Cylinder
Welded Channel Iron Frame
Lever Control Ram Advance
One Hand Operation
COMMENTS: Mfg. In The U.S.A.
