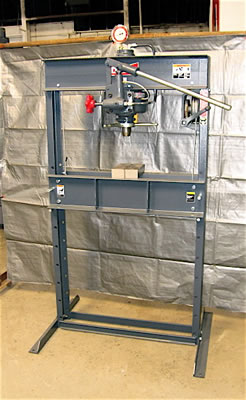

Model: 25H
Type: Hand Operated H-Frame
Capacity: 25 TON
Year: New
SPECIFICATIONS:
Capacity…………….. 25 Ton
Ram Travel…………… 5”
Minimum Ram To Table….. 4”
Maximum Ram To Table….. 39”
Between Uprights……… 33-1/2″
Between Table Channels… 5-3/16”
Height ……………… 76″
Weight………………. 460 Lbs
EQUIPPED WITH:
Hand Operated Hydraulic Jack
(2) Forged Steel V-Blocks
(2) Forged Steel Table Plates
Flat Ram Nose
V-Ram Nose (N/A On 25 Ton)
Pressure Gauge
Self Locking Table Hoist
COMMENTS: Mfg In The U.S.A.
USA IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part?
Have a Technical Question?
CALL: IMCO at 614-436-4376
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
