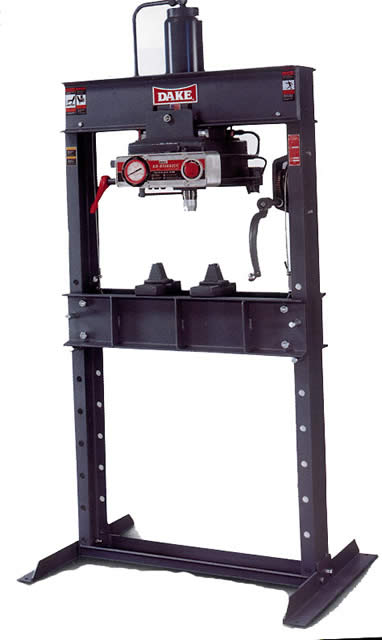

Model: 2P-25
Year: New
SPECIFICATIONS:
# Of Pumps ………….. 2
Capacity…………….. 25 Ton
Air Pressure…………. 90-125 PSI
Ram Travel…………… 10”
Advanced Speed……….. 100 IPM
Press Speed………….. 10 IPM
Minimum Ram To Table….. 1”
Maximum Ram To Table….. 36”
Between Uprights……… 33-1/2″
Between Table Channels… 5-3/16”
Height ……………… 81″
Weight………………. 800 Lbs
EQUIPPED WITH:
Hand Operated Hydraulic Jack
(2) Forged Steel V-Blocks
(2) Forged Steel Table Plates
Flat Ram Nose
By-Pass Hole
V-Ram Nose (N/A On 25 Ton)
Safety Release Valve
Self Locking Table Hoist
Rapid Ram Return
Stroke Indicator
Movable Workhead
Adjustable Table
Pressure Gauge
COMMENTS: Mfg In The U.S.A.
