Model: SE-2030
Year: New
SPECIFICATIONS:
Max Dist Column To Spindle Center:… 12.5”
Number Of Spindles………………. 1
Column Size:……………………. 4.1”
Spindle Taper:………………….. #3 MT
Spindle Travel:…………………. 6”
Table Size:…………………….. 14” x 20”
Spindle Speed(8)………………… 90 – 3610 RPM
Motor Size:…………………….. 1.5/2 HP-220/440V-3 Phs
Weight:………………………… 640 Lbs
Dimensions……………………… To be Advised
Drilling Capacity:
Mild Steel…………………. 1-1/4”
Cast Iron………………….. 1-1/2”
EQUIPPED WITH:
Spindle Power Down Feed
Direct Gear Drive / No Loss Of Power
Table Rotates 360 Deg. Around Column
Production Table
Emergency Stop
Thermal Overload
OPTIONAL ACCESSORIES AVAILABLE: … P.O.B.
Spindle Automatic Reversing
Coolant
Foot Operated Reversing Switch
COMMENTS:
Mfg. In Europe

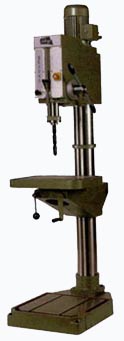

Catalog Photo
