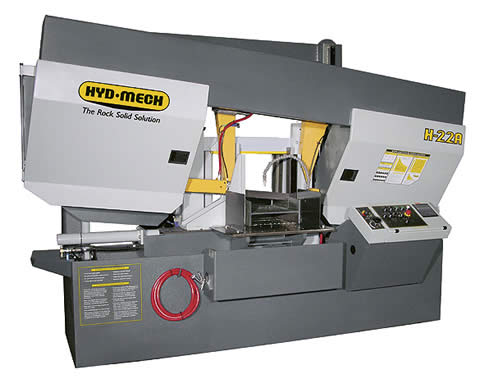

Model: H-22-A
Year: New
Type: Hydraulic
SPECIFICATIONS:
Round at 90……… 22”
Round at 30……… NA
Round at 45……… NA
Rec. Or Sq. At 90… 22”x 22”
Rec. at 30………. NA
Rec. at 45………. NA
Work Height……… 31”
Blade Size………. 2” x 22’6” x .063”
Blade Speed(VFD)…. 40-300 SFM
Motor Size………. 10 HP – 220/440V – 3 Phs
Weight………….. 12,500 Lbs
EQUIPPED WITH:
STANDARD EQUIPMENT:
(2) Hydraulic Full Stroking Vises
(1) w/(0-34”) Shuttle Stroke
“Hydraulic” Chip Conveyor
“Hydraulic” Powered Guide Arm Positioning
Powered Blade Brush
Split Front Vise
Work Light
Wash Down Hose
MACHINE FEATURES
Dual Post
Mitsubishi PLC 100 …
(99) Memory Storage
Cutting Length
Quantity of Pieces
Blade Speed & Downfeed Rate
Variable Frequency Drive
“Hydraulic” Positive Downfeed
“Hydraulic” Blade Tension
Flat Carbide Guides
Blade Breakage Switch
OPTIONAL ACCESSORIES:
Full Capacity Overhead Bundle Cutting (2) Vises
Out Of Stock Switch
Laser Beam Light
Vertical Rollers
6 Degrees Canted Head
Variable Vise Pressure (2) Vises
Mist Lubrication System
Blade Deviation Monitor
Idler Conveyor (5’ Section)
Idler Conveyor (10’ Section)
COMMENTS: Mfg. In North America
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO At 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
