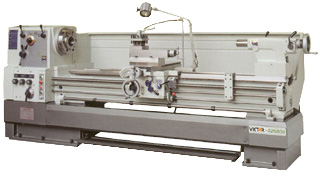

Model: S22100-S
Type: Heavy Duty Lathe
Year: New
SPECIFICATIONS:
Headstock Type……….. Geared Head
Swing Over Bed……….. 22”
Swing Over Cross Slide… 14-1/8”
Swing in Gap…………. 29-3/8”
Dist Between Centers….. 100”
Spindle Nose…………. D1-11
Spindle Hole…………. 4-1/8”
Bed Width……………. 15-3/4”
Spindle Speeds(12)……. 15 – 1200 RPM
Threading……………. Inch/Metric
Motor Size…………… 15 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Gross Weight…………. 6864 Lbs
Dimensions…………… 161″(l) x 45″(w) x 67″(h)
EQUIPPED WITH:
(3” – 10”) Steady Rest
(4) Way Tool Post
20” Face Plate
Coolant System
On Carriage Splash Guard
Chuck Cover w/Limit Switch
Thread Dial
Halogen Work Light
Wrenches & Tool Box
MACHINE FEATURES
4-1/8″ Spindle Hole
(2) Speed Tailstock
H & G Gears & Bed Ways
Gap Bed
“Meehanite Casting” Bed
Foot Brake
Spindle Support by (3) Precision Bearings
Rigid Compound for Heavy Cutting
OPTIONAL ACCESSORIES: P.O.R.
12″ – 3 Jaw Chuck
15″ – 3 Jaw Chuck
15″ – 3 Jaw Chuck (Zero Set)
16″ – 4 Jaw Chuck
(8” – 15”) Steady Rest w/Roller Heavy Duty
Follow Rest
Drive Plate
#5 MT Live Center
Taper Turning Attachment
Quick Change Tool Post w/(5) Holders
(2) Axis Newall DRO – Installed
“U.S.A.” IMPORT – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
