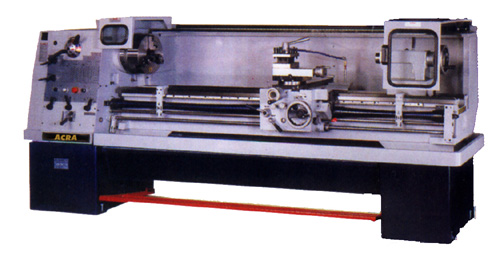

Model: 2100C
Type: Precision Lathe
Year: New
SPECIFICATIONS:
Headstock…………….. Geared Head
Swing Over Bed………… 21”
Swing Over Cross Slide…. 14”
Swing In Gap………….. 31”
Dist. Between Centers….. 60”
Spindle Nose………….. D1-8
Spindle Hole………….. 3-1/8”
Bed Width…………….. 13-1/2”
Spindle Speeds (16)……. 20 – 1600 Rpm
Threading…………….. Inch/Metric
Motor Size……………. 12.5 HP – 220/440V – 3 Phs
Tailstock Taper……….. #5 MT
Weight:………………. 6800 Lbs
EQUIPPED WITH:
12” – 3 Jaw Chuck
16” – 4 Jaw Chuck
(4) Way Tool Post
Chuck Guard
Full Length Splash Guard
Coolant System
3″ Steady Rest
Follow Rest
Inch/Metric Threading
Thread Dial
Halogen Light
Tool Box
MACHINE FEATURES:
3-1/8″ Spindle Hole
Hardened & Ground Gears & Bedways
Gap Bed
Forward/Reverse Matrix Disc Clutches
Adjustable Apron – Automatic Feed Kickout
Apron Controls Include Forward/Reverse
for Carriage & Cross Slide Feed
Full Length Foot Brake
Spindle Supported by (3) Tapered Roller Bearings
Automatic Forced Lubrication to Headstock
Safety Overload Feed Clutch
OPTIONAL ACCESSORIES … P.O.R. :
12” – 3 Jaw “Set Tru” Chuck
12” – 6 Jaw “Set Tru” Chuck
Taper Attachment
Lever Collet Attachment
5C Collet Set (1/8” x 1-1/8” x 1/16”)
Aloris Type Quick Chage Tool Post w/(5) Holders
Micro Carriage Stop
Face Plate
18N Jacobs “Ball Bearing” Chuck w/Arbor
#5 MT Live Center
Newall Digital Readout
