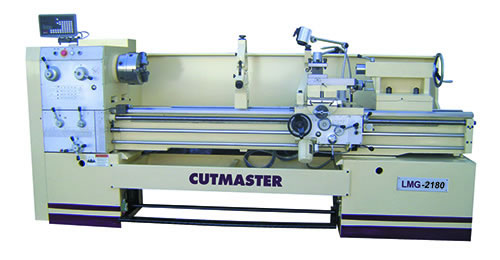

Model: LMG
Type: Geared Head
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 21”
Swing Over Cross Slide… 13”
Swing in Gap…………. 25”
Dist Between Centers….. 60”… 80”
Spindle Nose…………. D1-8
Spindle Hole…………. 3-1/8”
Bed Width……………. 13”
Spindle Speeds(12)……. 26-1800 RPM
Threading……………. Inch / Metric
Motor Size…………… 10 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Weight………………. 6000 – 6650 Lbs
Dimensions…………… To be Advised
EQUIPPED WITH:
MACHINE FEATURES
3-1/8” Spindle Hole
Gap Bed Design
Foot Brake
H & G Headstock Gears & Bedways
STANDARD EQUIPMENT:
(2) Axis Digital Readout
12” – 3 Jaw “Semi Steel” Chuck (Reversible Jaws)
12” – 4 Jaw “Semi Steel” Chuck (Reversible Jaws)
(1” – 3”) Follow Rest
4-1/4” Steady Rest (Brass Tip)
(4) Way Tool Post
27” Face Plate
(1) Way Rapid Traverse (Longitudinal Only)
Splash & Chip Guard (Full Length)
Taper Attachment
Coolant Pump
Work Light
Thread Dial
Leveling Screws
Tool Box w/Tools
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
(4” – 12”) Steady Rest w/Roller Jaws
9” Drive Plate
(6) Pc Aloris Quick Change Tool Post
5C Collet Hand Lever Collet Closer
(33) Pc 5C Collet Set (1/16” – 1-1/16”)
Live Center For #5 MT
Leveling Pad
Taper Attachment
Newall DRO .. (Installed)
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
