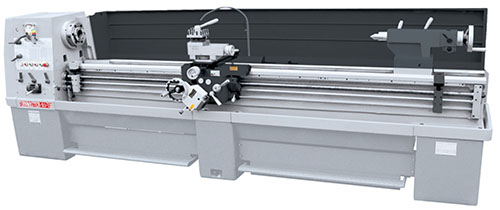

Model: AT-21-G
Type: Geared Head
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 21”
Swing Over Cross Slide… 14”
Swing In Gap…………. 31”
Dist Between Centers….. 40”
Spindle Nose…………. D1-8
Spindle Hole…………. 3-1/16”
Bed Width……………. 13-1/2”
Spindle Speeds(16)……. 20 – 1600 RPM
Threading……………. Inch / Metric
Motor Size…………… 12.5 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Weight………………. 5830 Lbs
Dimensions…………… To be Advised
EQUIPPED WITH:
MACHINE FEATURES
3-1/16” Spindle Hole
Cap Bed Design
Forward/Reverse Disc Clutch
Hardened & Ground Head Stock Gears
Hardened & Ground Bed Ways
Turcite On Carriage Ways
Overload Feed Clutch
Constant Horsepower
STANDARD EQUIPMENT
Drive Plate
(4) Way Tool Post
Rear Splash Guard
Chip & Coolant Tray
Thread Dial
(2) #5 MT Centers
Foot Brake
Tools
Manual
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
10” – 3 Jaw “Semi Steel” Chuck
12” – 3 Jaw “Semi Steel” Chuck
16” – 3 Jaw “Semi Steel” Chuck
12” – 4 Jaw “Semi Steel” Chuck
16” – 4 Jaw “Semi Steel” Chuck
Taper Turning Attachment … Installed
5C Collet Closer … Installed
5C Collet Set (1/8” – 1-1/16” x 1/16”)
“Aloris Type” Q.C. Tool Post w/(5) Holders
14N Jacobs “Ball Bearing” Chuck w/Arbor (0” -1/2” Capacity
#5 MT Live Center
Chuck Guard w/Limit Switch
Halogen Work Light
Follow Rest w/Bronze Tips
(3/4” – 9”) Steady Rest w/Rollers
(6” – 11”) Steady Rest w/Rollers
Micro Carriage Stop
(5) Position Carriage Stop
(2) Speed Tailstock
Rapid Traverse
Electronic Variable Speed
(2) Axis Acu-Rite D. R. O
COMMENTS: Mfg. In Europe
