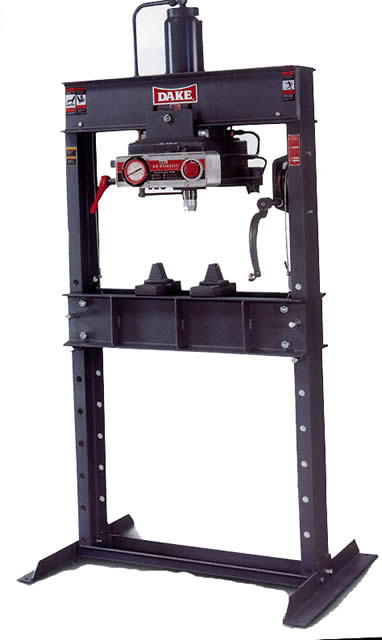

Model: 2P-200
Type: Air Over Hydraulic H-Frame
Capacity: 200 TON
Year: New
SPECIFICATIONS:
# Of Pumps ………….. 2
Capacity…………….. 200 Ton
Air Pressure…………. 90-125 PSI
Ram Travel…………… 16”
Advanced Speed……….. 22″ IPM
Press Speed………….. 2″ IPM
Minimum Ram To Table….. 6”
Maximum Ram To Table….. 30”
Between Uprights……… 48″
Between Table Channels… 18-1/4”
Height ……………… 100″
Weight………………. 4,380 Lbs
EQUIPPED WITH:
(2) Forged Steel V-Blocks
(2) Forged Steel Plates
V-Ram Nose
Stroke Indicator
Pressure Gauge
Safety Release Valvue
Self Locking Table Hoist
MACHINE FEATURES
Air Operation
Rapid Ram Return
By-Pass Hole
(2) Air Pump
Movable Workhead
COMMENTS: Mfg In The U.S.A.
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part?
Have a Technical Question?
CALL: IMCO at 614-436-4376
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
