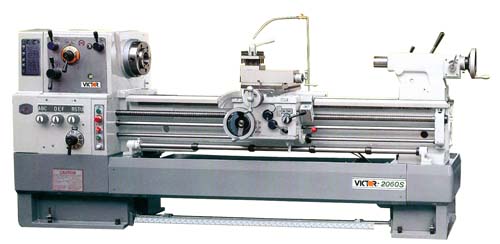

Model: 2000-S … Geared Head
Type: Heavy Duty Lathe
Year: New
SPECIFICATIONS:
Headstock…………….. Geared Head
Swing Over Bed:……….. 20”
Swing Over Cross Slide:… 13”
Swing In Gap:…………. 26-3/8”
Dist. Between Centers:…. 80”
Spindle Nose:…………. D1-8
Spindle Hole:…………. 3-1/8”
Bed Width:……………. 15-3/4”
Spindle Speeds:(16)……. 15 – 1200 RPM
Threading:……………. Inch / Metric
Motor Size:…………… 10 HP – 220/440V – 3 Phs
Tailstock Taper:………. #5 MT
Weight:………………. 5870 Lbs
Dimensions……………. 140″(l) x 44″(w) x 65″(h)
EQUIPPED WITH:
10” – 3 Jaw Chuck
12” – 4 Jaw Chuck
3” – 8” Steady Rest (Roller Bearing Type)
(4) Way Tool Post
(2) Speed Tail Stock
Follow Rest
Coolant System
Full Length Splash Guard
Thread Dial
Wrenches & Tool Box
Work Light
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
12” – 3 Jaw Chuck
15” – 3 Jaw Chuck
14” – 4 Jaw Chuck
Taper Turning Attachment
Micro Carriage Stop
Lever Collet Closer – 5C
Q.C. Tool Post w/(5) Holders
19” Face Plate
(2) Axis Newall DRO … (Installed)
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
