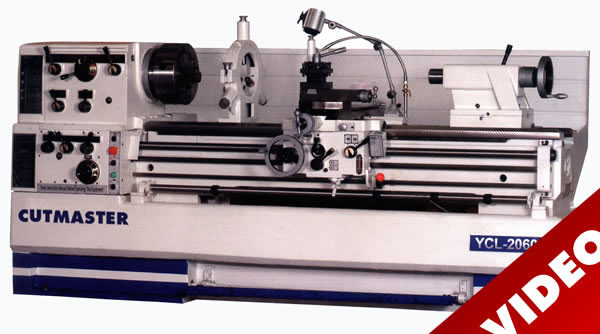

Model: YCL Series … Geared Head
Type: Engine Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 20”
Swing Over Cross Slide… 11-7/8”
Swing In Gap…………. 29”
Dist. Between Centers…. 60”
Spindle Nose…………. D1-8
Spindle Hole…………. 3-1/8”
Bed Width……………. 13-3/4”
Spindle Speeds(12)……. 45 – 1600 RPM
Threading……………. Inch/Metric
Motor Size…………… 10 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Weight………………. 5200 Lbs
Dimensions…………… To be Advised
STANDARD EQUIPMENT
12″ – 3 Jaw “Semi-Steel” Chuck
13″ – 4 Jaw “Cast Iron” Chuck
Follow Rest
6-1/2” Steady Rest w/Rollers
(4) Way Tool Post
18” Face Plate
Splash & Chip Guard (Full Length)
(4) Position Auto Kick-Out Longitudinal Carriage Stop
Thread Dial
Taper Turning Attachment
Coolant Pump
Halogen Work Light
Leveling Screws
Oil Pressure Sight Glasses
Tool Box w/ Tools
Manuals
MACHINE FEATURES:
3-1/8” Spindle Hole
Foot Brake
Gap Bed Design
Gear Head
H & G Head Stock, Gears, & Bed Ways
“OPTIONAL ACCESSORIES” AVAILABLE … (P.O.R.)
12” – 3 Jaw “Set Tru” Chuck
12” – 6 Jaw “Set Tru” Chuck
16” – 4 Jaw (Steel) Chuck
“Hand Lever” 5C Collet Closure
10” Steady Rest (Roller Jaws)
Aloris Q,C, Tool Post w/5 Holders
Newall DRO … (Installed)
