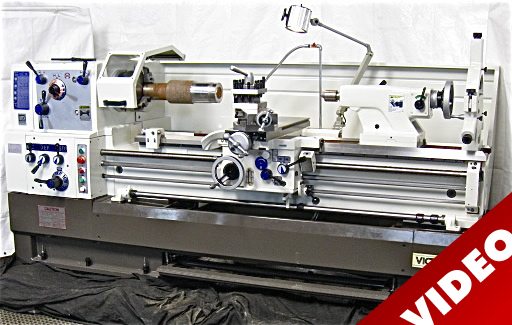

Model: 2000-S … Geared Head
Type: Heavy Duty
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 20”
Swing Over Cross Slide… 13”
Swing In Gap…………. 26-3/8”
Dist. Between Centers…. 40”
Spindle Nose…………. D1-8
Spindle Hole…………. 3-1/8”
Bed Width……………. 15-3/4”
Spindle Speeds(16)……. 15 – 1200 RPM
Threading……………. Inch / Metric
Motor Size…………… 10 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Weight………………. 4600 Lbs
Dimensions…………… To be Advised
EQUIPPED WITH:
10” – 3 Jaw Chuck
12” – 4 Jaw Chuck
3” – 8” Steady Rest (Roller Bearing Type)
(4) Way Tool Post
(2) Speed Tail Stock
Follow Rest
Coolant System
Full Length Splash Guard
Thread Dial
Wrenches & Tool Box
Work Light
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
12” – 3 Jaw Chuck
15” – 3 Jaw Chuck
14” – 4 Jaw Chuck
Taper Turning Attachment
Micro Carriage Stop
Lever Collet Closer – 5C
Q.C. Tool Post w/(5) Holders
19” Face Plate
(2) Axis Newall DRO … (Installed)
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
