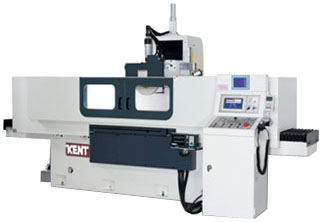

Model: KGS-510-WM-1
Type: (3) Axis Automatic
Year: New
SPECIFICATIONS:
Table Size………………… 20″ x 40”
Longitudinal Travel…….(X).. 44-1/2”
Cross Travel…………..(Y).. 21-5/8”
Vertical Travel………..(Z).. 23”
Center Line Spindle To Table… 23”
Table Load w/Chuck…………. 2200 Lbs
Wheel Size………………… 14” x 1-1/2” x 5”
Axis……………………… (3) Axis Automatic
Motor Size………………… 7.5 HP – 220/440V – 3 Phs
Weight……………………. 11,000 Lbs
Dimensions………………… To be Advised
EQUIPPED WITH :
Mitsubishi Control (Touch Screen)
20” x 40” Electro-Magnetic Chuck
Variable Power Chuck Control
Magnetic Separator & Coolant System
“Column Traveling” Cross Feed
“Auto” Incremental Down feed
Precision Spindle
Grinding Wheel
Wheel Balancing Base & Arbor
Overhead Parallel Dresser
Table Dresser
Wheel Flange
Full Length Rear Splash Guard
Tool Box & Tools
Halogen Work Light
Table Load (Including Chuck) … 2200 Lbs
OPTIONAL ACCESSORIES (P.O.R.)
Hydraulic Parallel Dresser
Extra Wheel Flange
Magnetic Separator & Paper Coolant System (M4)
(1) Axis Sony Digital Readout
(2) Axis Sony” Digital Readout
Automatic Wheel Dressing & Compensation
Installation & Setup by Factory Technician
