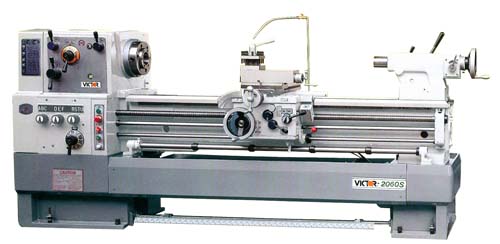

Model: 2000S … GEARED HEAD
Type: Heavy Duty Lathe
Year: New
SPECIFICATIONS:
Headstock…………….. Geared Head
Swing Over Bed:……….. 20”
Swing Over Cross Slide:… 13”
Swing In Gap:…………. 26-3/8”
Dist. Between Centers:…. 160”
Spindle Nose:…………. D1-8
Spindle Hole:…………. 3-1/8”
Bed Width:……………. 15-3/4”
Spindle Speeds:(16)……. 20 – 1550 Rpm
Threading:……………. Inch / Metric
Motor Size:…………… 10 Hp-220/440V-3 Phs
Tailstock Taper:………. #5 Mt
Weight:………………. 8330 Lbs
Dimensions……………. 230″(l) X 44″(w) X 65″(h)
EQUIPPED WITH:
10 – 3 Jaw Chuck
12 – 4 Jaw Chuck
3 – 8 Steady Rest (Roller Bearing Type)
(4) Way Tool Post
(2) Speed Tail Stock
Rapid Traverse
Follow Rest
Coolant System
Full Length Splash Guard
Thread Dial
Wrenches & Tool Box
Work Light
OPTIONAL ACCESSORIES AVAILABLE: … P.O.R.
12 – 3 Jaw Chuck
15 – 3 Jaw Chuck
14 – 4 Jaw Chuck
Taper Turning Attachment
Micro Carriage Stop
Lever Collet Closer…5C
Q.C. Tool Post W/(5) Holders
19 Face Plate
120 Newall Dro…(Installed)
160 Newall Dro…(Installed)
COMMENTS:
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part?
Have a Technical Question?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
