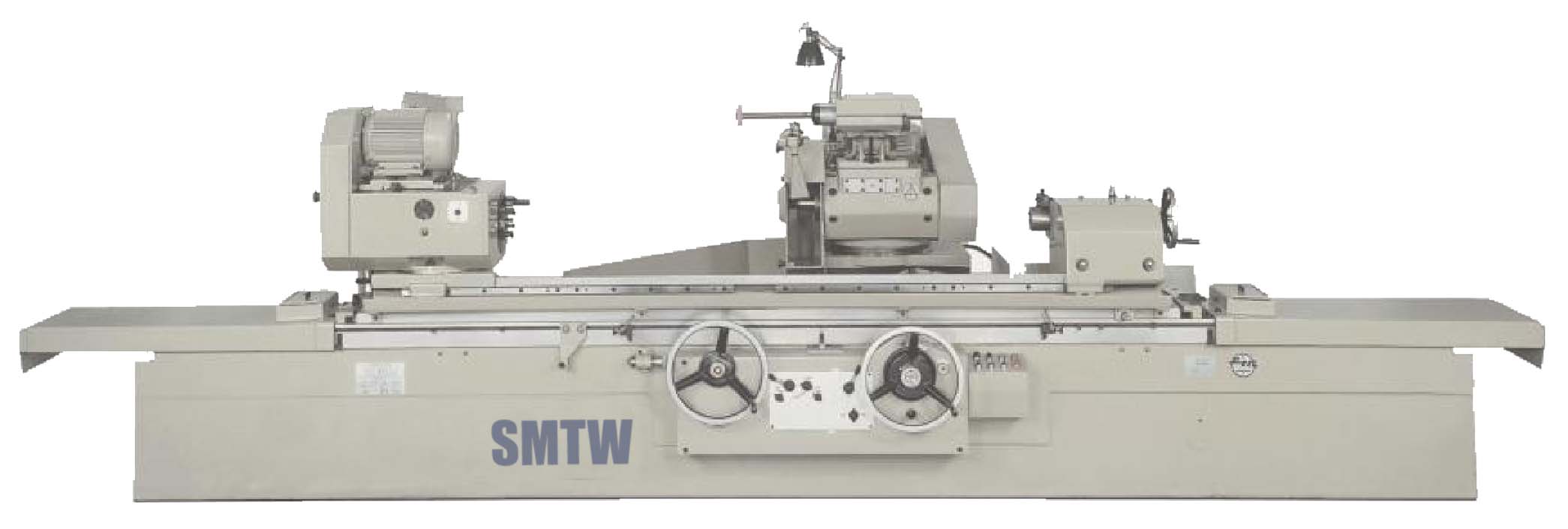

Model: MP-1450-B/3000-Plain
Max. Swing: 20″
Year: NEW
SPECIFICATIONS:
Swing Over Table:………………….. 20”
Distance Between Centers:…………… 120”
Max. Length Grinding Between Centers:… 120”
Max. Diameter:…………………….. 20″
Max. Weight Between Centers:………… 3000 Lbs
Tailstock Taper:…………………… 6 MT
Wheel Size:……………………….. 20” x 3” x 12”
Motor Size: Main Spindle:…………… 10 HP-220V-3 Phs
Motor Size: Work Head:……………… 5 HP-220V-3 Phs
Spindle Taper:…………………….. 6 MT
Spindle Head – Swivel:……………… (+ / -) 90 Degrees
Automatic Infeed:………………….. Yes
Weight:…………………………… 25,000 Lbs
Dimensions………………………… To be Advised
EQUIPPED WITH:
12” – 4 Jaw Chuck
“Swing Down” I.D. Attachment
U.S. Standard Electric
Dial Indicator
Wheel Dresser W/Diamond
Wheel Flanges
Wrench Set & Manuals
2 HP … I.D. Grinding Attachment (Swing Down)
Drive Dogs
Flood Coolant System
Leveling Wedges
Wheel Balancing Arbor
Work Light
Carbide Tipped Center
Steady Rest (Closed Style)
Grinding Wheel
Wheel Extractors
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Digital Readout (Infeed)
Coolant Filtration System
Installation & Training (3) Days
COMMENTS: Mfg. By Ecotech (SMTW)
SMTW … Largest Grinder Mfg. In World
“Parts” … U.S.A. Service Center
“U.S.A.” DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
