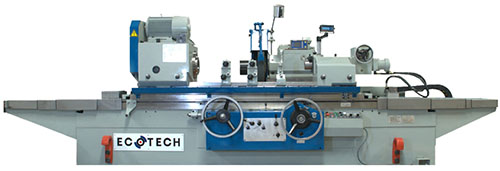

Model: GUM – 20-118
Year: NEW
SPECIFICATIONS:
Swing Over Table:………………….. 20”
Distance Between Centers:…………… 120”
Max. Length Grinding Between Centers:… 120”
Max. Diameter:…………………….. To Be Advised
Max. Weight Between Centers:………… 3000 Lbs
Tailstock Taper:…………………… 6 MT
Wheel Size:……………………….. 20” x 3” x 12”
Motor Size: Main Spindle:…………… 10 HP-220V-3 Phs
Motor Size: Work Head:……………… 5 HP-220V-3 Phs
Spindle Taper:…………………….. 6 MT
Spindle Head – Swivel:……………… (+ / -) 90 Degrees
Automatic Infeed:………………….. Yes
Weight:…………………………… 25,000 Lbs
Dimensions………………………… To be Advised
EQUIPPED WITH:
12” – 4 Jaw Chuck
“Swing Down” I.D. Attachment
USA Standard Electric
Dial Indicator
Wheel Dresser W/Diamond
Wheel Flanges
Wrench Set & Manuals
2 HP … I.D. Grinding Attachment (Swing Down)
Drive Dogs
Flood Coolant System
Leveling Wedges
Wheel Balancing Arbor
Work Light
Carbide Tipped Center
Steady Rest (Closed Style)
Steady Rest (Open Style)
Grinding Wheel
Wheel Extractors
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Digital Readout (Infeed)
Paper Filtration System
Installation & Training
COMMENTS:
Mfg. By Ecotech
Ecotech Largest Grinder Mfg. In World
“Parts” … U.S.A. Service Center
“U.S.A.” DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
