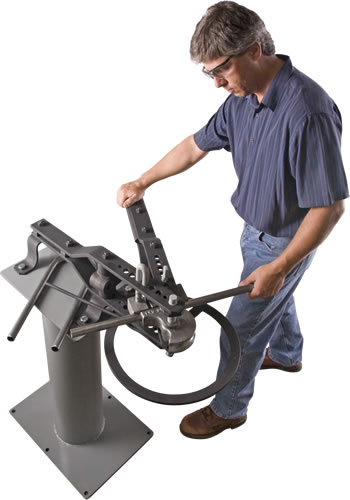

Model: #2
Type: Hydraulic
Year: New
SPECIFICATIONS:
CAPACITIES:
OD Tube Maximum ……. 1-1/4″
Sched. 40 Pipe …….. 1″
Square Tube ……….. 1″
Angle Iron ………… 2″ x 2″ x 3/16″
Round or Square Bar … 1-1/4″
Weight… 395 LBS
STANDARD FEATURES:
Pedestal Stand
Main Frame
Swinging Frame
Flat-head Pin
U-Pin
Center Pin
Circle Stop Gauge
MACHINE FEATURES:
Ideal for Short Production Runs or Single Bends
Solid Steel, Heat Treated for Strength & Durability
Easy-Install Dies Drop in Place w/Pins – No Wrenches
True 180 Degree Dies for One-Pull Bends
Capacity up to 360 Degree
Cast Iron Dies Last & Last – Virtually No Replacements Necessary
No Assembly or Alignment Necessary
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
“L-Type” Swinging Frame
TOOLING PACKAGES:
General Purpose for Sched. 40 Pipe (1/4″ – 2″)
General Purpose for Bar Stock
“Leg-In” for Angle Iron Bends (5″-36″ Radius)
“Leg-Out” for Angle Iron Bends (5″-36″ Radius)
Tool for Sharp Bends in Flat & Square Stock
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
