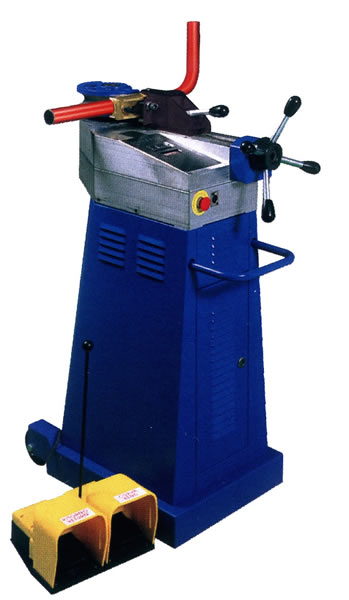

Model: Superbender
Year: New
SPECIFICATIONS:
Minimum Diameter………… 1/4″
Maximum Diameter………… 2″
Maximum Speed…………… 2 RPM
Minimum Centerline Radius… 2 x’s Mat Dia
Maximum Centerline Radius… 8-7/8″
Bending Capacity………… 0-180 Degrees
Drive Motor…………….. 2 HP – 120V – 1 Phs
Dimensions…(H,L,W)…….. 39.5″ x 22.5″ x 16.25″
Weight…………………. 300 Lbs
CAPACITIES:
Pipe ……………….. 1-1/2″ x Sch 40
M.S. Tube …………… 2″ x .140″
S.S. Tube …………… 1-7/8″ x .095″
304L S.S. Tube ………. 1-7/8″ x .109″
Round Solids ………… 1-1/4″
Rect. Solids ………… 5/16″ x 1-7/8″
Rect. Tube ………….. 13/16″ x 1-5/8″ x .125″
Sq. Solid …………… 1-3/16″
Sq. Tube ……………. 1-9/16″ x .125″
STANDARD EQUIPMENT
Programmable PLC Control
Programmable Bending Angle w/Display
Programmable Material Spring Back Compensation w/Display
Foot Pedal
Swing Away Counter-Bending Die Vise
MACHINE FEATURES
Centerline Radius as Small as 2 x’s Material Diameter w/o Mandrel Tooling
Patented Tooling System w/Multiple Radius Available
Tools Mount to Hex Shaped Shaft for Rapid Changeover
Portable Base w/Lift Handle
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Pipe Tooling Kit
Small Radius Tube Kit
Large Radius Tube Kit
(2) Axis Positioning Table
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
